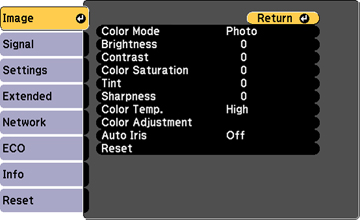

Settings on the Image menu let you adjust the quality of your image for the input source you are currently using. The available settings depend on the currently selected input source.
To change settings for an input source, make sure the source is connected and select that source.
|Color Mode||See the list of available Color Modes||Adjusts the vividness of image colors for various image types and environments|
|Brightness||Varying levels available||Lightens or darkens the overall image|
|Contrast||Varying levels available||Adjusts the difference between light and dark areas of the image|
|Color Saturation||Varying levels available||Adjusts the intensity of the image colors|
|Tint||Varying levels available||Adjusts the balance of green to magenta tones in the image|
|Sharpness||Varying levels available||Adjusts the sharpness or softness of image details|
|Color Temp. (color temperature)||High
|Sets the overall color tone; High tints the image blue and Low tints the image red|
|Color Adjustment||Slider bars for each color||Adjusts the intensity of individual hues in the image|
|Adjusts the projected luminance based on the image brightness when certain Color Modes are selected; High Speed sets faster luminance correction for fast-moving images|
