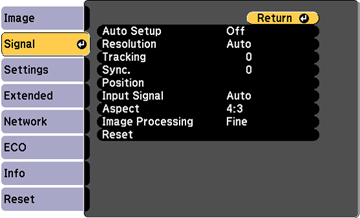

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.
To change settings for an input source, make sure the source is connected and select that source.
Setting | Options | Description |
---|---|---|
Auto Setup | On
Off |
Automatically optimizes computer image quality (when On) |
Resolution | Auto
Wide Normal |
Sets the input signal resolution if not detected automatically using the Auto option |
Tracking | Varying levels available | Adjusts signal to eliminate vertical stripes in computer images |
Sync. | Varying levels available | Adjusts signal to eliminate fuzziness or flickering in computer images |
Position | Up, down, left, right | Adjusts the image location on the screen |
Progressive | Off
Video Film/Auto |
Sets whether to convert
interlaced-to-progressive signals for certain video image types
Off: for fast-moving video images Video: for most video images Film/Auto: for movies, computer graphics, and animation |
Noise Reduction | Off
NR1 NR2 |
Reduces flickering in analog images in two levels |
HDMI Video Range | Auto
Normal Expanded |
Sets the video range to match the setting of
the device connected to the HDMI input port
Auto: detects the video range automatically Expanded: normally for images from a computer; can also be selected if the image is too dark Normal: normally for images from a device other than a computer; can also be selected if the black areas of the image are too bright |
Input Signal | Auto
RGB Component |
Specifies the signal type from input sources
connected to computer ports
Auto: detects signals automatically RGB: corrects color for computer/RGB video inputs Component: corrects color for component video inputs |
Video Signal | Auto
Various video standards |
Specifies the signal type from the input
sources connected to the video ports
Auto: detects signals automatically |
Aspect | See the list of available aspect ratios | Sets the aspect ratio (width-to-height ratio) for the selected input source |
Overscan | Auto
Off 4% 8% |
Changes the projected image ratio to make the edges visible by a selectable percentage or automatically |
Image Processing | Fine
Fast |
Adjusts image processing speed/quality
Fast: increases pen tracking when using the optional interactive module Fine: increases image quality |
