Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.
  1. Turn on the projector and display an image.

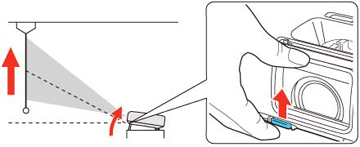

  2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.


    The foot extends from the projector.
  3. Release the lever to lock the foot.

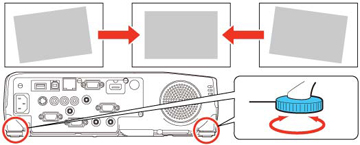

  4. If the image is tilted, rotate the rear feet to adjust their height.


If the projected image is unevenly rectangular, you need to adjust the image shape.
