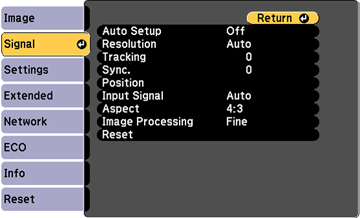

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.



Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Auto Setup On

Off

Automatically optimizes computer image quality (when On)
Resolution Auto

Normal

Wide

Sets the input signal resolution if not detected automatically using the Auto option
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in computer images
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images
Position Up, down, left, right Adjusts the image location on the screen
Progressive Off

Video

Film/Auto

Sets whether to convert interlaced-to-progressive signals for certain video image types

Off: for fast-moving video images

Video: for most video images

Film/Auto: for movies, computer graphics, and animation

Noise Reduction Off

NR1

NR2

Reduces flickering in analog images in two levels
HDMI Video Range Normal

Expanded

Auto

Sets the video range to match the setting of the device connected to the HDMI input port

Auto: detects the video range automatically

Expanded: normally for images from a computer; can also be selected if the image is too dark

Normal: normally for images from a device other than a computer; can also be selected if the black areas of the image are too bright

Input Signal Auto

RGB

Component

Specifies the signal type from input sources connected to computer ports

Auto: detects signals automatically

RGB: corrects color for computer/RGB video inputs

Component: corrects color for component video inputs

Video Signal Auto

Various video standards

Specifies the signal type from the input sources connected to the video ports

Auto: detects signals automatically

Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Overscan Auto

Off

4%

8%

Changes the projected image ratio to make the edges visible by a selectable percentage or automatically
Image Processing Fine

Fast

Adjusts image processing speed/quality

Fast: increases pen tracking when using the optional interactive module

Fine: increases image quality
