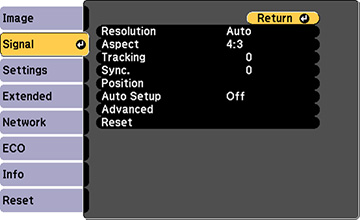

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.
To change settings for an input source, make sure the source is connected and select that source.
Setting | Options | Description |
---|---|---|
Resolution | Auto
Wide Normal |
Sets the input signal resolution if not detected automatically using the Auto option |
Aspect | See the list of available aspect ratios | Sets the aspect ratio (width-to-height ratio) for the selected input source |
Tracking | Varying levels available | Adjusts signal to eliminate vertical stripes in computer images |
Sync. | Varying levels available | Adjusts signal to eliminate fuzziness or flickering in computer images |
Position | Up, down, left, right | Adjusts the image location on the screen |
Auto Setup | On
Off |
Automatically optimizes computer image quality (when On) |
Overscan | Auto
Off 4% 8% |
Changes the projected image ratio to make the edges visible by a selectable percentage or automatically |
Advanced | — | See the Advanced settings table in this topic |
Advanced settings
Setting | Options | Description |
---|---|---|
HDMI Video Range | Auto
Normal Expanded |
Sets the video range to match the setting of the
device connected to the HDMI input port
Auto: detects the video range automatically Normal: for images from a device other than a computer; select if the black areas of the image are too bright Expanded: for images from a computer; select if the image is too dark |
Input Signal | Auto
RGB Component |
Specifies the signal type from input sources connected
to computer ports
Auto: detects signals automatically RGB: corrects color for computer/RGB video inputs Component: corrects color for component video inputs |
Video Signal | Auto
Various video standards |
Specifies the signal type from the input sources
connected to the video ports
Auto: detects signals automatically |
