Adjusting the Pen Operation Area

The pen operation area is normally adjusted automatically if you connect a different computer or adjust the computer's resolution. If you notice that the pen position is incorrect, you can adjust the pen area manually.

Note: Manual adjustment is not available when projecting from a LAN source.

Project your computer's desktop.
Press the Menu button, select the Extended menu, and press Enter.
Select the Easy Interactive Function setting and press Enter.

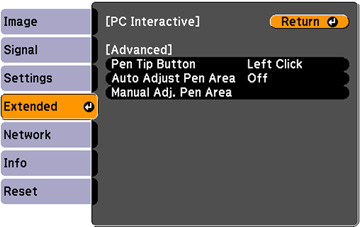

Select Advanced and press Enter.
Select Manual Adj. Pen Area and press Enter.

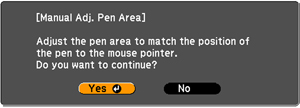

Press Enter to select Yes. The mouse pointer moves toward the top left corner.
When the mouse pointer stops at the top left corner of the image, touch the tip of the pointer with the pen. The mouse pointer moves toward the bottom right corner.
When the mouse pointer stops at the bottom right corner of the image, touch the tip of the pointer with the pen.
