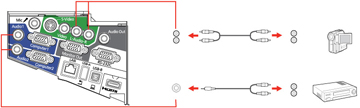

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports.

If you are projecting video using a Computer port, connect the projector to the video source using an optional stereo mini-jack audio cable or an RCA audio cable.

If you are projecting video using the Video or S-Video port, connect the projector to the video source using an RCA audio cable.

  1. Connect the audio cable to your video source's audio-out ports.
  2. Do one of the following:
    • Connect the other end of the cable to the projector's Audio port that corresponds to the Computer port you are using for video.
    • Connect the red and white plugs on the other end of the cable to the projector's L-Audio-R ports.
