Microsoft Windows 98SE, Windows 2000, Windows Me, Windows XP, Windows XP Professional x64 Edition, or Windows Vista
|
|
•
|
256MB RAM for Windows 98SE, Windows 2000, Windows Me, Windows XP, and Windows XP Professional x64 Edition (512MB recommended)
|
|
•
|
A Windows-compliant USB port and shielded USB “AB” cable up to 6.5 feet (2 meters) long. Using an improperly shielded USB cable may cause the CX7000F Series to malfunction.
|
|
•
|
|
•
|
A USB port and a shielded “AB” cable up to 6.5 feet (2 meters) long. Using an improperly shielded USB cable may cause the CX7000F Series to malfunction.
|
|
•
|
|
•
|
|
•
|
|
8.5 × 11.7 inches (216 × 297 mm), A4 or US letter size
|
|
|
50 to 4800, 7200, and 9600 dpi
(50 to 4800 dpi in 1 dpi increments) |
|
|
16 bits per pixel per color internal
8 bits per pixel per color external (maximum) |
|
Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
|
A4 (8.3 × 11.7 inches)
A5 (5.8 × 8.3 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
User Defined up to 8.5 × 44 inches
|
|
|
0.003 to 0.005 inch (0.08 to 0.13 mm)
|
|
|
Weight (for plain bond paper)
|
17 to 24 lb (64 to 90 g/m²)
|
|
No. 10 (4.1 × 9.5 inches)
|
|
|
0.016 to 0.02 inch (0.40 to 0.52 mm)
|
|
|
20 to 24 lb (75 to 90 g/m²)
|
Note:
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
|

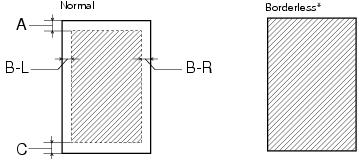

The minimum top margin is 0.12” (3 mm).
|
|
|
The minimum left margin is 0.12” (3 mm); 0.20” (5 mm) for envelopes.
|
|
|
The minimum right margin is 0.12” (3 mm); 0.20” (5 mm) for envelopes.
|
|
|
The minimum bottom margin is 0.12” (3 mm).
|
|
|
The minimum bottom margin is 0.78” (20 mm) for envelopes.
|
|
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note:
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
* Adapter required
|
Memory Stick/MemoryStick PRO card slot
|
Compatible with Memory Stick Standard version 1.42-00 or Memory Stick Standard Memory Stick PRO Format Specifications version 1.02-00 cards
|
|
Compatible with SD Memory Card Specifications / PART1. Physical Layer Specification Version 2.0 cards and MultiMediaCard Standard Version 4.1 cards
|
|
|
Compatible with xD-Picture card Card Specification Version 1.20 cards Type M and Type H cards
|
|
6 months at 77 °F (25 °C) after opening the package
|
|
|
–4 to 104 °F (–20 to 40 °C)
1 month at 104 °F (40 °C)
Freezing*: 3.2 °F (–16 °C)
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution:
To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty.
Do not use an ink cartridge if the date on the package has expired.
To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty.
Do not use an ink cartridge if the date on the package has expired.
|
About 100 sheets at 17 lb (64 g/m²)
|
|
|
Width: 18.2 inches (463 mm)
Depth: 13.9 inches (353 mm)
Height: 7.2 inches (184 mm)
|
|
|
15.2 lb (6.9 kg) without the ink cartridges
|
|
Power consumption
|
||
|
Operation: 50 to 95 °F (10 to 35 °C)
Storage: –4 to 104 °F (–20 to 40 °C)
120 hours at 140 °F (60 °C)
1 month at 104 °F (40 °C)
|
|
|
Humidity
(without condensation) |
|
Recommended cable length
|
Less than 6.6 feet (2 meters)
|
