How To

Use the Start Button on the Scanner

Start Button feature
Using the Start Button to scan
Setting up the Start Button feature

Start Button feature

You can open EPSON Scan, start scanning, and have the scanned image sent to a specific application, simply by pressing the Start button on your scanner. When you press the Start button, the following events occur.

EPSON Scan starts as a standalone application.

It opens an application of your choice, or scans and sends the scanned document to a specified Start button-compatible application.

Note for Windows users:

Scanner events are supported by Windows. You can assign a desired application to the Start button on the scanner. See Setting up the Start Button feature for details on setting up the Start button.

Note for Mac OS users:

You cannot assign an application to the Start button on the scanner. This feature is for Windows only.

Note:

If you are operating your scanner over a network, you may not be able to use the scanner's Start button in the ways described above. Refer to Scanning in a Network Environment for details about network scanning.

[Top]

Using the Start Button to scan

This feature enables you to reduce the scanning time. Use this feature in the following procedure.

Press the Start button on your scanner. EPSON Scan starts up automatically.

Make the appropriate settings for your scanning purpose if necessary, and then click the Scan button.

[Top]

Setting up the Start Button feature

This section explains how to make settings that control which application to open when you press the scanner's Start button. You can specify one application to open automatically when you press the Start button, or you can have a window open allowing you to choose from a list of applications. Follow the steps below to make these settings.

Note for Mac OS users:

You cannot assign an application to the Start button on the scanner. This feature is for Windows only.

For Windows Vista or XP users

Do one of the following.

Windows Vista: Click > Control Panel > Hardware and Sound or click > Settings > Control Panel.

Windows XP: Click Start > Control Panel > Printers and Other Hardware or click Start > Settings > Control Panel.

Select Scanners and Cameras.

Do one of the following.

Windows Vista: Select your scanner and click the Properties button. When you see the User Account Control screen, click Continue.

Windows XP: Right-click your scanner’s icon and select Properties.

Select the Events tab.

Select Start Button from the Select an event list. Select Start this program and then select a desired application from the list.

Note:

If Prompt for which program to run is selected, when the button is pressed, a dialog box appears to prompt you to select an application from the list.

Some applications do not support linkage to scanners and digital cameras. Linkage is available only to applications that appear on the list.

To save your settings, click Apply and then OK.

Note:

You need to click Apply whenever you change a setting.

If you need to disable the Scanner events, select Take no action in the scanner's Properties dialog box.

For Windows 2000 users

Note:

Screen shots in this section may differ in appearance from what actually appears on your screen. The instructions are the same.

Click Start, point to Settings, and then select Control Panel.

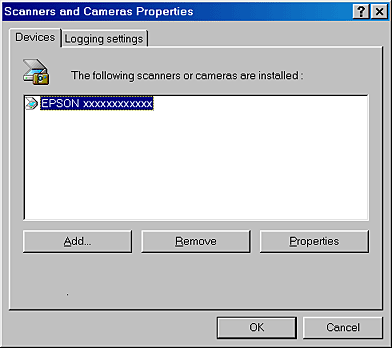

Double-click the Scanners and Cameras icon.

Select your scanner from the installed scanners and cameras list. Then click Properties.

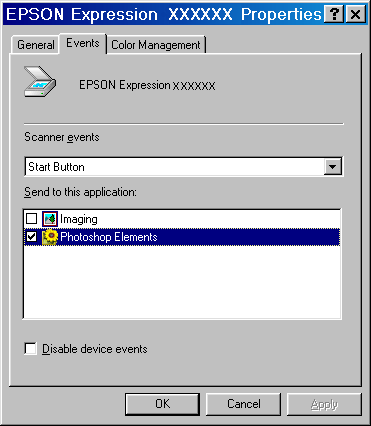

Select the Events tab.

Select a desired button from the Scanner events list, and then select the check box of a desired application in the Send to this application list. Clear the rest of the check boxes.

Note:

If multiple applications are selected, when you click the button, a dialog box appears to prompt you to select just one from the list.

Some applications do not support linkage to scanners and digital cameras. Linkage is available only to applications that appear in the Send to this application list.

To save your settings, click Apply and then OK.

Note:

You need to click Apply whenever you change a button setting. Be sure to restart the computer.

If you need to disable Scanner events, select the Disable device events check box in the scanner's Properties dialog box.

[Top]
