Unpacking the Transparency Unit
The optional A3 Transparency Unit (B12B813362) makes it possible to scan films and slides in full color. Once you install the Transparency Unit, you can leave it in place even when you want to scan paper documents.

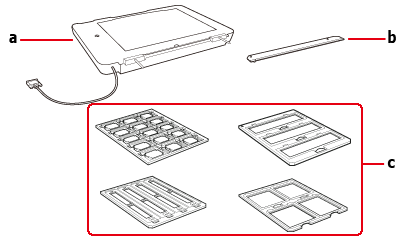

Make sure that all the items shown below are included and have not been damaged during shipping. Contact Epson Technical Support if any item is missing or damaged.
a. transparency unit
b. transparency guide
c. film holders
b. transparency guide
c. film holders
Unlocking the transportation lock
Before you install the Transparency Unit, you need to unlock the transportation lock.
 |
Turn the unit so that the glass side faces up.
|
 |

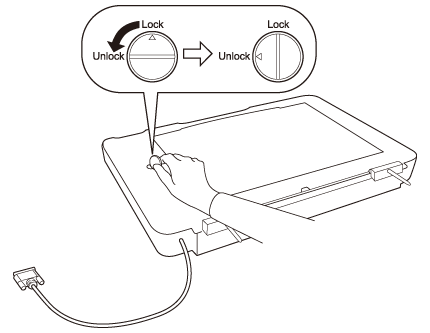

Use a coin to unlock the transportation lock by turning it counterclockwise one-quarter.
|
Note:|
Before transporting the scanner, lock the transportation lock to prevent damage.
If the unit’s lamp assembly is not in its home position, you cannot lock the transportation lock. If this is the case, reattach the unit to the scanner, close the unit, and then turn on the scanner; the unit’s lamp assembly then returns to its home position. Turn off the scanner and remove the Transparency Unit.
|
