Control Panel
The scanner has one LCD screen, two indicator lights, and four buttons.

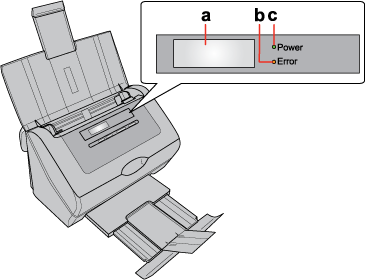

Lights
The status lights are on the right side of the LCD screen.
a. LCD screen
b. Error light
c. Power light
b. Error light
c. Power light
|
Power light (Green)
|
Error light (Orange)
|
Meaning
|
 On |
 Off |
Ready to scan images.
|
 Flashing |
Initializing or scanning.
|
|
|
Off |
 On |
Scanner cover is open.
|
 Flashing |
An error has occurred. See The Lights Are Flashing for more information.
|
|
|
Off |
Off |
The scanner is off.
|

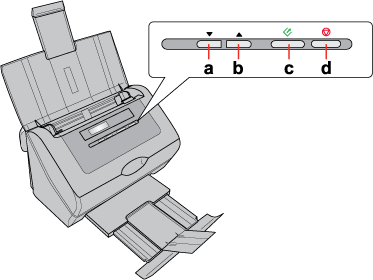

Buttons
The buttons are below the LCD screen.
|
Button
|
Function
|
|
a.
 Down arrow |
Scrolls forward through the LCD screen menu list.
|
|
b.
 Up arrow |
Scrolls backward through the LCD screen menu list.
|
|
c.
 Start |
Starts scanning.
|
|
d.
 Cancel |
Cancels scanning.
|
LCD Screen
You can select a preset scan job from the LCD screen menu list. Press the Up arrow and Down arrow buttons to scroll through the jobs. The job name is displayed on the first line and the settings for the selected job are displayed on the second line on LCD screen. For detailed information, see Setting Up the LCD Screen Menu List.
Up arrow and Down arrow buttons to scroll through the jobs. The job name is displayed on the first line and the settings for the selected job are displayed on the second line on LCD screen. For detailed information, see Setting Up the LCD Screen Menu List.
Note for Mac OS X users:|
Only the job number is displayed on the LCD screen. To confirm the job settings, check the Button Settings tab in the Epson Event Manager main window. See Assigning a Job in Epson Event Manager to the LCD Menu for instructions.
|
