Loading Paper

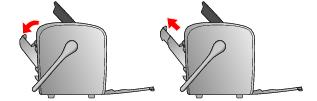

  1. Move the handle to the back and down, then tilt up the photo viewer screen.

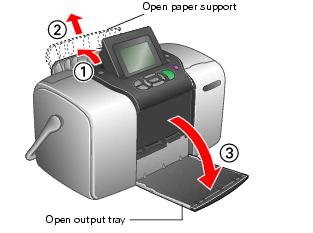

  2. Open the paper support and output tray.



    3. Note: Keep the handle all the way down when printing, to allow paper to feed through.

  3. Slide the top part of the paper support up gently until it clicks into place.



    4. Caution: Don't load plain paper, or you may damage PictureMate.

    Note: Load a maximum of 20 sheets at one time. If you are printing more than 20 photos, PictureMate will prompt you when it is time to load more paper. Make sure paper is glossy side up to prevent smearing. For best results, don't touch the glossy surface of the paper.

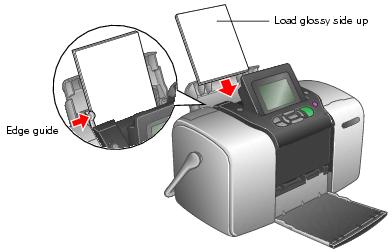

  4. Place your paper against the right edge, with the glossy side up.



  5. Slide the edge guide snug against the paper, but not so tight that the paper is bent.

    6. Note: Always keep unused paper in the original package and store it flat to prevent curling. Make sure you don't store it in a damp or humid area.

Supported Paper

PictureMate supports the following paper:

PictureMate Photo Paper: 100 sheets are included in the PictureMate Print Pack (part# T5570) along with a PictureMate photo cartridge.

Note: If you are out of PictureMate Photo Paper, but do not see the replace cartridge message, you can still print. For optimal print quality and prints that resist water, smudging, and fading, use PictureMate Photo Paper from a new Print Pack or Epson Premium photo paper, borderless 4 ´ 6 inches. See How Many Photos Will I Get From a PictureMate Print Pack?.
