Load Envelopes

You can print on plain paper envelopes in 4 1/8 × 9 1/2 inch (#10) (105 × 241 mm) size.

1.	Open the paper support and pull up the extensions.

2.	Open the output tray, pull out the extensions, and raise the paper stopper.

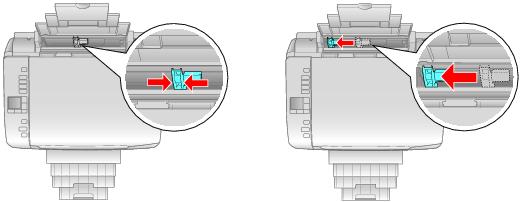

3.	Squeeze the edge guide as you slide it all the way to the left.

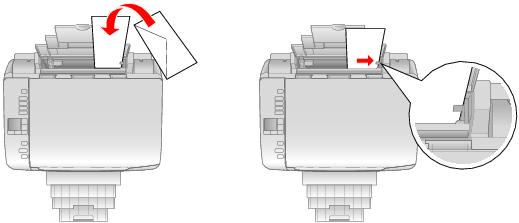

4.	Load up to 10 envelopes against the right side and beneath the tab.

Load them printable side up and flap edge left.

Tip:
Press each envelope flat before loading it or load one envelope at a time.

5.	Slide the edge guide to the edge of the envelopes, but not too tightly.

Note:
Do not use envelopes that are curled or folded, and avoid using envelopes that are too thin because they may curl during printing. Before printing, select Envelope as the paper type, select Envelope #10 as the paper size, and Landscape as the orientation.
