This section gives you suggestions and recommended settings in order to improve OCR (Optical Character Recognition) scanning results.

Scanning Text

Make sure you select Text (Background Removal) for Image Type and OCR for Destination in the Manual mode window.

If the recognition rate is not satisfactory with the default settings, follow these steps to change the settings:


[Top]

Improving Character Recognition

In the Manual mode window, make sure Text (Background Removal) is selected in the Image Type list box and OCR is selected in the Destination list box. Then click the Image Type button. The Image Type dialog box appears.

In the Image Type dialog box, select None for B/W Option, and then click OK.

In the Manual mode window, click the Full Preview button. Then click the Image Controls button to display the Image Controls dialog box.


Image Controls button

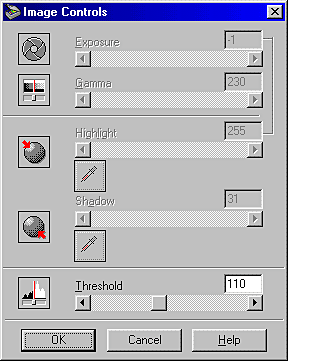

Image Controls dialog box

Use the Threshold slider to change the threshold value, monitoring the results of your changes in the Preview window. Adjusting the threshold value can make it easier for OCR to recognize characters.


[Top]

If you still have problems...

In the Manual mode window, increase the Resolution value to 400. Remember that scanning at higher resolution takes longer and may not increase the recognition rate much.

If you still have problems, try using the enhancement tools in your OCR software to make adjustments.


[Top]

Potential Text Recognition Problems

The quality of the text in your original document greatly effects OCR results.

The following types of originals can make recognition difficult and should be avoided if possible:

Remember that OCR software cannot recognize handwritten characters.
