For details about your Epson Stylus Photo 1400 and using it with your computer, see these sections:
|
•
|
A Microsoft Windows compatible PC with a Pentium® III 800 MHz processor (Pentium 4 processor, 2 GHz or faster recommended)
|
|
•
|
|
•
|
USB connection requires a computer with preinstalled Windows 2000, Windows XP, Windows XP Professional x64 Edition, or Windows Vista; a Windows-compliant USB port (Windows-compliant Hi-Speed USB 2.0 port recommended); and a shielded USB 2.0 “AB” cable. Using an improperly shielded cable or a USB 1.1 cable may cause the printer to malfunction.
|
|
•
|
|
•
|
A shielded USB 2.0 “AB” cable. Using an improperly shielded cable, or a USB 1.1 cable may cause the printer to malfunction.
|
|
6 individual ink cartridges in black, cyan, magenta, yellow, light cyan, and light magenta
|
|
Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
|
Super B (13 × 19 inches)
US B (11 × 17 inches)
A3 (11.7 × 16.5 inches)
A4 (8.3 × 11.7 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
11 × 14 inches
12 × 12 inches
User Defined up to 13 × 44 inches
|
|
|
0.003 to 0.004 inch (0.08 to 0.11 mm)
|
|
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
|
No. 10 (4.1 × 9.5 inches)
|
|
|
20 lb (75 g/m²) to 24 lb (90 g/m²)
|
Note:
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
|

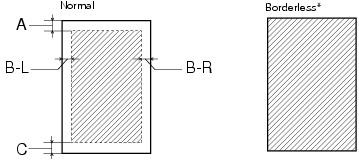

The minimum left margin is 0.20 inch (5.0 mm) for envelopes.
|
|
|
The minimum right margin is 0.20 inch (5.0 mm) for envelopes.
|
|
|
The minimum bottom margin is 0.78 inch (20 mm) for envelopes.
|
|
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note:
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Caution:

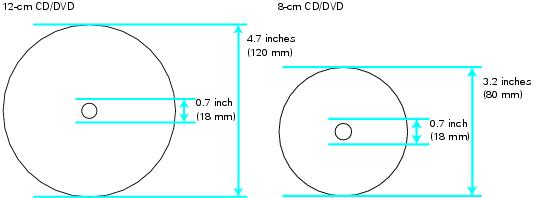

If you are not printing on a hub-printable disc, do not print in the following areas of the disc or the CD/DVD tray may get stained with ink:
If you are not printing on a hub-printable disc, do not print in the following areas of the disc or the CD/DVD tray may get stained with ink:
|
0.7 to 1.7 inches (18 to 42 mm)
|
|
|
4.6 to 4.7 inches (117 to 120 mm) for a 12-cm disc
3.0 to 3.2 inches (77 to 80 mm) for a 8-cm disc
|
|
–4 to 104 °F (–20 to 40 °C)
Freezing*: 3.2 °F (–16 °C)
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Caution:
To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty.
Do not use an ink cartridge if the date on the package has expired.
To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty.
Do not use an ink cartridge if the date on the package has expired.
|
Power consumption
|
16 W (ISO/IEC 10561 Letter Pattern)
|
||
|
Storage: –4 to 104 °F (–20 to 40 °C)
|
|
|
Humidity
(without condensation) |
