Connecting to a Computer for VGA Video Using VGA Cables

You can connect the projector to your computer using VGA computer cables.
Note: To connect a Mac that includes only a Mini DisplayPort or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to a VGA video port. Contact Apple for compatible adapter options.
  1. If necessary, disconnect your computer's monitor cable.

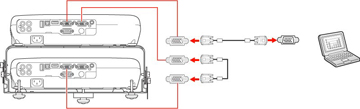

  2. Connect a VGA computer cable to your computer's monitor port. Then connect the other end of the cable to the commander projector's Computer1 port.
  3. Connect a VGA computer cable between the commander projector's Computer2 port and the receiver projector's Computer1 port.


  4. Change the Monitor Out Port setting in the projector's Extended menu to Monitor Out.
  5. Tighten the screws on the VGA connectors.
