Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using optional RCA-style video or A/V cables and a splitter that supports composite video signals.
Note: If your video source has two composite video ports, you may not need a splitter.

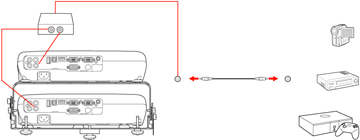

  1. Connect a cable with the yellow connector to your video source's yellow video output port. Then, connect the other end to the splitter.
  2. Connect a cable between each projector's Video port and the splitter.


Note: If you connected a game console, it may take a few seconds for your image to appear. To reduce the lag time, set your game console's input signal to a progressive signal of 480p or 720p. See your game console documentation for instructions.
