EPSON Smart Panel

Applications in the EPSON Smart Panel Window

Scan to P.I.M. File
Scan to PDA
Scan to Web
Photo Print
Scan for Creativity
Scan to Application
Copy
Scan to OCR
Scan to E-mail
Scan to File

The EPSON Smart Panel window contains various applications, as described below.

By clicking an icon, you can scan and then send data directly to the application.

In addition, you can assign any of the available applications to the  Start button on the scanner. See Assigning an Application to the Start Button for details. This makes scanning even simpler. All you need to do is press the  Start button on the scanner.

Scan to P.I.M. File

Use this application to scan and convert an image using the PRINT Image Matching standard, and then save the scanned image to a specific folder. When you launch this application, the image is scanned from EPSON TWAIN and displayed in the Verify Assistant dialog box. Click Finish, and the following dialog box appears. For details, click the Smart Panel Help icon.

Note:
  • To scan without PRINT Image Matching, use Scan to File instead.


[Top]

Scan to PDA

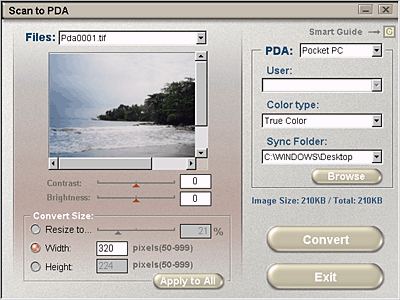

Use this application to scan and convert an image to a PDA-enabled file format. When you launch this application, the image is scanned from EPSON TWAIN and displayed in the Verify Assistant dialog box. Click Finish, and the following dialog box appears. Click Convert to export the image to the Sync folder or the specified folder. For details, click the Smart Panel Help icon.

Note:
  • To view the saved images on your PDA, you must connect the PDA to your computer.
  • Scan to PDA will not be installed if you don't have the Palm Desktop or other PDA software on your computer. If you add it later, you can install Scan to PDA. Insert your scanner CD-ROM. On the menu, click to "un-check" all software except EPSON Smart Panel. Then click Install. When you see the message asking you to Remove the old Smart Panel, click No. Then follow the instructions on the screen to install Presto! PixExpress.


[Top]

Scan to Web

Use this application to scan an image using PRINT Image Matching technology, and then upload it to the EPSON photo-sharing site. When you launch this application, the image is scanned from EPSON TWAIN and displayed in the Verify Assistant dialog box. Click Finish and the following dialog box appears. Click Upload to upload the image. For details, click the Smart Panel Help icon.

Note:


[Top]

Photo Print

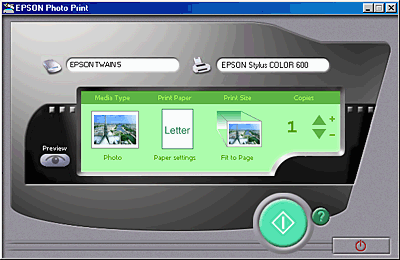

Use this application to scan and then print photos. You can print in various sizes, or place several photos on the same page. You can also create collages or print several versions of the same image. For details, click the Smart Panel Help icon.


[Top]

Scan for Creativity

Use this application to scan photos and then send the scanned image(s) to ArcSoft PhotoImpression. For details, click the EPSON Smart Panel Help icon.

Note for Perfection 2400 Photo users:
Scan for Creativity is not available for your scanner.


[Top]

Scan to Application

Use this application to scan and then send images to a desired application for further editing. For details, click the Smart Panel Help icon.


[Top]

Copy

Use this application to turn your scanner into a digital copy machine. The application looks like a real copy machine, yet its functions are far more powerful and flexible. For details, click the Smart Panel Help icon.

Note:
You can also open this application by pressing the  Copy button on the scanner. For details, see Using the Copy Button.



Note for Perfection 1260 and 1260 Photo:
When you use the Copy application, make sure you place your document or photo in the upper right corner of the document table.


[Top]

Scan to OCR

Use this application to scan and convert images to text. The converted text can be saved or sent to a word processor. For details, click the Smart Panel Help icon.


[Top]

Scan to E-mail

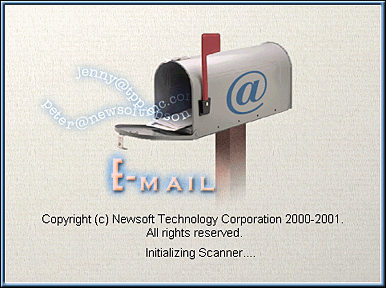

Use this application to scan an image and send an e-mail message with your image attached. For details, click the Smart Panel Help icon.

Note:
You can also open this application by pressing the  Scan to E-mail button on the scanner. For details, see Using the Scan to E-mail button.


[Top]

Scan to File

Use this application to scan, convert, and then save an image to a specific folder. When you use this feature, the image is scanned from EPSON TWAIN and displayed in the Verify Assistant dialog box. Click Finish, and the following dialog box appears. For details, click the Smart Panel Help icon.

Note:
To scan with PRINT Image Matching, use the Scan to P.I.M. File feature instead.


[Top]
