When feeding paper forward
When feeding paper backward

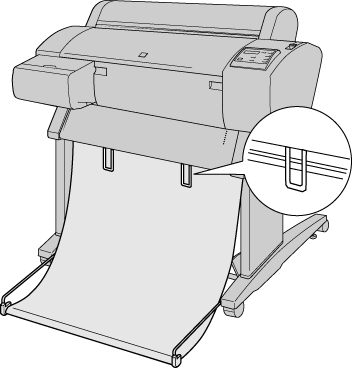

Roll paper is wound tightly and may feed with a curl. If so, attach the paper guides as shown.
|The paper guides only need to be used when the paper feeds with a curl. At other times, remove the guides, otherwise your printouts may be damaged.|
|There are two paper guides for EPSON Stylus Pro 7600 and three for EPSON Stylus Pro 9600.|

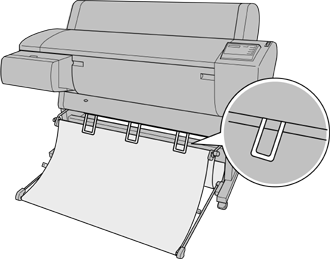

Extend the paper guides out from the printer so they rest on the front of the paper basket.

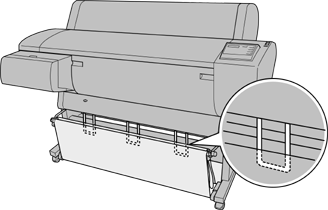

Extend the paper guides out from the printer so that they rest on the back of the paper basket.
