Scanning Using the Automatic Document Feeder

When you scan documents with the ADF, it is best to use Office Mode.
Note:
Do not open the ADF while you are scanning or you will see an option error and paper feeding will stop.
Do not load mixed-size document pages when you are scanning only a portion of each page.
Office Mode and Professional Mode are available for scanning documents using the ADF.
Make sure you installed the ADF and loaded your document in it. See Loading Documents in the Automatic Document Feeder for instructions.
Start Epson Scan. See one of these sections for instructions.

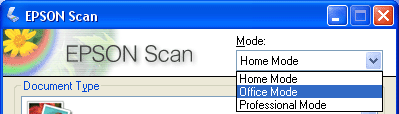

Click the arrow in the Mode box at the top right of the Epson Scan window. Then select Office Mode.
You see the Office Mode window:
Select whether the Image Type of your document pages is Color, Grayscale, or Black&White.
Select Auto Detect, ADF, or Document Table as the Document Source setting.
Note:
If you loaded mixed-size sheets at one time, select Auto Detect.
Select the size of your original document as the Size setting.
Click the arrow next to the Resolution list and select the number of dots per inch at which you want to scan. See the table below for some guidelines:
What you will do with the scanned image
Suggested scan resolution
Send via e-mail, upload to web, view only on the screen
96 to 150 dpi
Print, convert to editable text (OCR)
300 dpi
Fax
200 dpi
Click the Preview button toward the bottom of the Epson Scan window.
The ADF loads your first document page, then Epson Scan prescans it and displays it in the Preview window. The ADF then ejects your first page.
Place your first page on top of the rest of the pages, then load the entire document into the ADF.
In the Preview window, draw a marquee (a line marking the scan area) around the portion of your document page that you want to scan.
For instructions on creating and adjusting a marquee, see Adjusting the Scan Area (Marquee).
Change any necessary Image Adjustments settings as listed in the table below.
Setting
Available mode(s) and description
Brightness
Adjusts the overall image lightness and darkness.
Contrast
Adjusts the difference between the light and dark areas of the overall image.
Unsharp Mask
Turn on to make the edges of image areas clearer for an overall sharper image. Turn off to leave softer edges.
Descreening
Removes the rippled pattern that can appear in subtly-shaded image areas, such as in skin tones. Also improves results when scanning magazine or newspaper images which include screening in their original print processes.
Text Enhancement
Enhances text recognition when scanning text documents.
Threshold
Adjusts the level at which the black areas in text and line art are delineated, improving text recognition in OCR programs. This setting is available only when the Image Type is set to Black&White.
Auto Area Segmentation
Makes grayscale images clearer and text recognition more accurate by scanning text in black & white while retaining the grayscale of the image. (Available only when you select Black&White as the Image Type setting.)
Image Option > Color Enhance
Enhances the color you select (red, green, or blue) in the scan. (Available only when you select Grayscale or Black&White as the Image Type setting.)
Image Option > Dropout
Drops out the color you select (red, green, or blue) from the scan. (Available only when you select Grayscale or Black&White as the Image Type setting.)
Click the Scan button to scan your document pages.
What happens next depends on how you started your scan.
If you started your scan by pressing the  Start button or running Epson Scan as a standalone program, you see the File Save Settings window. See Selecting File Save Settings for details.
If you started your scan from a scanning program such as ABBYY FineReader, your scanned pages open in the program window. Click Close to close the Epson Scan window and view your scanned pages in the program.
