Maintenance and Transportation

Cleaning the Print Head

If your printouts are unexpectedly light or faint, or you notice light or dark bands across your printout, you may need to clean the print head. This unclogs the nozzles so they can deliver ink properly. Print head cleaning uses ink, so clean it only if quality declines.

You can clean the print head using the ink button on the printer or using the Head Cleaning utility on your computer. You can also run a nozzle check to see if the print head needs cleaning.

Note:
Clean the print head only when print quality declines (for example, if you see lines in your printout or colors are incorrect or missing).

Before you clean the print head, check the print head nozzles first to confirm that the print head needs to be cleaned. This saves ink. For more information, see Checking the Print Head Nozzles.

If the red ink light comes on or flashes, you cannot clean the print head. In this case, replace the appropriate ink cartridge first.

Caution:
If you don’t use your printer often it is a good idea to print a few pages at least once a month to maintain good print quality.

Before you check the print head nozzles or clean the print head, make sure the CD/DVD tray is not inserted in the printer, and make sure the front tray is in the paper (lower) position.

•	Checking the Print Head Nozzles

•	Running the Head Cleaning Utility

•	Examining the Nozzle Check Pattern

Checking the Print Head Nozzles

Using Your Computer

1.	Make sure the printer is turned on but not printing, and the red ink light is not on. (If the red ink light is on, you need to replace a cartridge.)

2.	Make sure letter-size plain paper is loaded in the printer.

3.	Windows: Right-click the printer icon on your taskbar (in the lower right corner of your screen). Select Nozzle Check.

Macintosh OS X: Open the Applications folder and select EPSON Printer Utility2. Select SPR280 Series in the printer list, click OK, and select Nozzle Check.

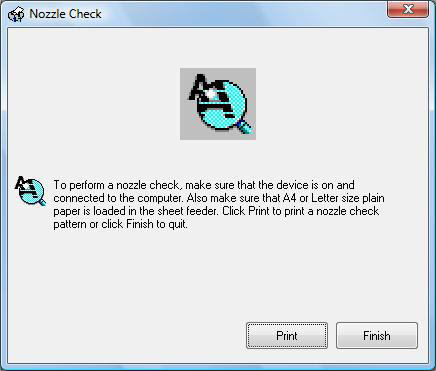

You see a screen like the following:

4.	Click Print or Next. The nozzle check pattern prints:

5.	If there are no gaps or lines, click Finish.

If there are gaps or lines, or the test patterns are faint, click Clean. Then read the on-screen instructions and skip to step 3 in Running the Head Cleaning Utility Using Your Computer to clean the nozzles.

Using the Buttons on the Printer

1.	Make sure the printer is turned on but not printing, that the CD/DVD tray is not inserted in the printer, and the red ink light is not on. (If the red ink light is on, you need to replace a cartridge.)

2.	Turn the printer off and make sure the front tray is in the paper (lower) position.

3.	Make sure letter-size plain paper is loaded in the printer.

4.	Hold down the  paper button, then press the  power button. Hold down both buttons until the  power light begins to flash, then release the  power button.

5.	When the nozzle check starts to print release the  paper button. Check the nozzle check pattern that prints to see if there are gaps in the lines.

6.	If there are no gaps or lines, the print head does not need to be cleaned.

If there are gaps or lines, or the test patterns are faint, follow the steps in Running the Head Cleaning Utility to clean the nozzles.

Running the Head Cleaning Utility

Using Your Computer

1.	Make sure the printer is turned on but not printing, that the CD/DVD tray is not inserted in the printer, and the red ink light is off. (If the red ink light is flashing or on, you need to replace a cartridge.)

2.	Windows: Right-click the printer icon on your taskbar (in the lower right corner of your screen). Select Head Cleaning.

Macintosh OS X: Open the Applications folder and select EPSON Printer Utility2. Select SP R280 Series in the printer list, click OK, and select Head Cleaning.

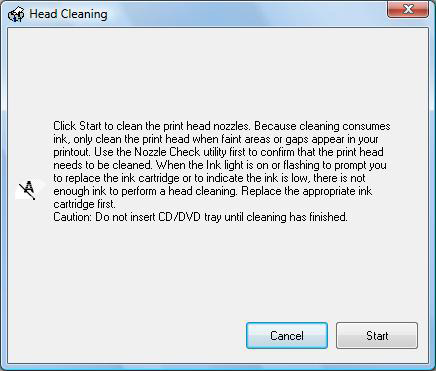

You see a screen like the following:

3.	Click Start or Next.

Cleaning takes several seconds. The printer runs a head cleaning cycle and the green  power light flashes.

Caution:
Never turn off the printer while head cleaning is in progress. You may damage it.

Do not insert the CD/DVD tray until cleaning has finished.

4.	When the green power light stops flashing, make sure paper is loaded in the printer, then do the following:

Windows: Click Print Nozzle Check Pattern, then click Print.

Macintosh OS X: Click Confirmation, then click Next.

The nozzle check pattern prints (see Examining the Nozzle Check Pattern for details).

5.	If there are no gaps or lines, click Finish.

If there are still gaps or lines, or the test patterns are faint, click Clean to clean the print head again.

If you don’t see any improvement after cleaning three times, turn the printer off and wait overnight. This allows any dried ink to soften. Then, try cleaning the print head again.

If you still don’t see any improvement, refer to Problems and Solutions.

Using the Buttons on the Printer

1.	Make sure the printer is turned on but not printing, and the red ink light is off. (If the red ink light is flashing or on, you need to replace a cartridge.)

2.	Hold down the ink button on the printer for approximately 3 seconds.

The printer runs a head cleaning cycle and the green  power light flashes. Cleaning takes several seconds.

Caution:
Never turn off the printer while head cleaning is in progress. You may damage it.

Do not insert the CD/DVD tray until cleaning has finished.

3.	When the green power light stops flashing, make sure paper is loaded in the printer, then print a nozzle check to determine whether you need to clean the print head again. See Checking the Print Head Nozzles for more information.

If you don’t see any improvement after cleaning three times, turn the printer off and wait overnight. This allows any dried ink to soften. Then, try cleaning the print head again.

If you still don’t see any improvement, refer to Problems and Solutions.

Examining the Nozzle Check Pattern

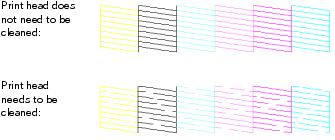

Examine the nozzle check pattern you printed. Each staggered line should be solid, with no gaps, as shown.

•	If your printout looks okay, you’re done.

•	If you see any gaps (as shown below), clean the print head again.

Replacing an Ink Cartridge

•	When the red ink light flashes, one or more ink cartridges are low on ink.

•	When the red ink light stays on, you need to replace the cartridge(s).

You’ll also see a message on your screen when you print telling you which cartridge is low or expended.

When a cartridge is more than six months old, you may need to replace it if printouts don’t look their best. If the quality doesn’t improve after cleaning and aligning the print head, you can replace the cartridge even if the red ink light is off.

•	Checking the Ink Supply

•	Purchasing Ink Cartridges

•	Removing and Installing Ink Cartridges

•	Ink Cartridge Precautions

Checking the Ink Supply

Note:
Epson cannot guarantee the quality or reliability of non-genuine ink. If you install non-genuine ink cartridges, the ink cartridge status will not be displayed.

If any of the ink cartridges installed in the printer is broken, incompatible, or improperly installed, the ink cartridge status will not be accurately displayed.

When you use your printer as a shared printer on a network, the client operating systems may not be able to communicate directly with the printer and some functions will not be available for the client.

To check your ink supply, do the following:

•	Windows: Double-click the printer icon on your taskbar (in the lower right corner of your screen). You see a window like the following:

•	Macintosh OS X: Open the Applications folder and select EPSON Printer Utility2. Select SP R280 Series in the printer list, click OK, and select EPSON StatusMonitor.

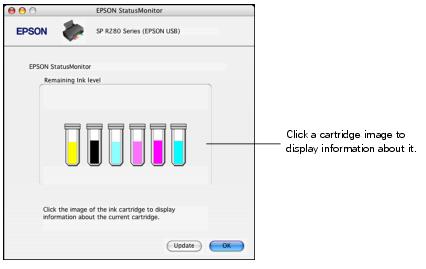

You see a window like this:

Note:
To update the ink cartridge status, click Update.

Purchasing Ink Cartridges

Epson offers two different capacity cartridges for each color in your Epson Stylus Photo R280.

Use these Epson ink cartridges within six months of installing them and before the expiration date on the package.

Ink cartridge	Part number
Black	78
Cyan	78
Magenta	78
Yellow	78
Light Cyan	78
Light Magenta	78
High-Capacity Black	77
High-Capacity Cyan	77
High-Capacity Magenta	77
High-Capacity Yellow	77
High-Capacity Light Cyan	77
High-Capacity Light Magenta	77

Note:
Try the High Capacity 77 cartridges available at http://www.epson.com/highcapacity (U.S. sales) or http://www.epson.ca (Canadian sales) or the 77 color multi-pack at your local reseller.

You may use any combination of cartridge sizes. (If you’ve installed a 77 black cartridge, you can still use a 78 magenta cartridge, for example.)

You can purchase genuine Epson ink and paper at Epson Supplies Centralsm at www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can also purchase supplies from an Epson authorized reseller. To find the nearest one, call 800-GO-EPSON (800-463-7766).

Removing and Installing Ink Cartridges

Before you remove or install an ink cartridge, read the Ink Cartridge Precautions.

Be sure you have a new ink cartridge before you begin. Once you start replacing a cartridge, you must complete all the steps in one session.

Caution:
Leave the expended cartridge installed until you have obtained a replacement, or the ink remaining in the print head nozzles may dry out.

Note:
We recommend that you use genuine Epson cartridges and do not refill them. The use of other products may affect your print quality and could result in printer damage.

Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability.

1.	Make sure the CD/DVD tray is not inserted in the printer, and make sure the front tray is in the paper (lower) position.

2.	Make sure the printer is turned on. (The green power light should be on, but not flashing.) Then open the printer cover.

3.	Press and release the ink button.

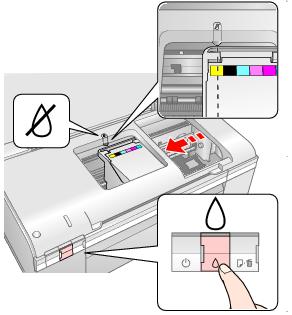

•	If you are replacing a low or expended cartridge, the print head moves to the ink cartridge check position, and the cartridge that needs to be replaced stops under the mark. The green power light begins to flash.

•	If you are replacing a cartridge before it is low or expended, the print head moves directly to the ink cartridge replacement position. Skip to step 6.

Note:
Don’t hold down the ink button for more than 3 seconds, or the printer will start to clean the print head.

Caution:
Do not move the print head by hand; this may damage your printer. Always press and release the ink button to move it.

Be careful not to touch the white flat cable inside the printer.

4.	Press the ink button again.

•	If more than one cartridge is low or expended, the next cartridge moves under the mark. Repeat this step.

•	If all the low or expended cartridges have been identified, the print head moves to the ink cartridge replacement position.

Note:
If an ink cartridge is low, you may continue to use it until it is expended.

You can also use the Status Monitor to check ink cartridge status. See Checking the Ink Supply for more information.

5.	Open the cartridge cover.

6.	Remove the new cartridge from its package.

Caution:
Be careful not to break the hooks on the front of the ink cartridge when you remove it from the package.

Always install an ink cartridge immediately after removing the old cartridge. If the cartridge is not installed promptly, the print head may dry out and be unable to print.

Do not touch the green IC chip on the side of the cartridge. This can damage the ink cartridge.

7.	Remove the yellow tape from the bottom of the ink cartridge.

Caution:
You must remove the yellow tape from the cartridge before you install it; otherwise, print quality may decline or you may not be able to print.

If you have installed an ink cartridge without removing the yellow tape, take the cartridge out of the printer, remove the yellow tape, and then reinstall it.

Do not remove the transparent seal from the bottom of the cartridge; otherwise, the cartridge may become unusable.


Do not remove or tear the label on the cartridge; otherwise, ink will leak.

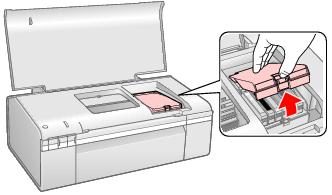

8.	Squeeze the back tab of the used cartridge as you lift it straight up and out of the printer and dispose of it properly. Don’t take the cartridge apart or try to refill it.

Warning:
If ink gets on your hands, wash them thoroughly with soap and water. If ink gets in your eyes, flush them immediately with water. If discomfort or vision problems continue after a thorough flushing, see a doctor immediately.

9.	Lower the new ink cartridge into the holder. Push down gently until the cartridge clicks into place.

10.	If you need to replace other ink cartridges, repeat steps 6 through 9 before continuing with step 11.

11.	Close the cartridge cover.

12.	Close the printer cover and press the ink button. The printer begins charging the ink delivery system.

The green  power light flashes and the printer makes noise. Charging takes about one and a half minutes. When it’s finished, the green  power light stops flashing and stays on, and the red ink light goes out.

Caution:
Never turn off the printer while the green  power light is flashing, unless the print head hasn’t moved or the printer hasn’t made noise for more than 5 minutes.

Do not insert the CD/DVD tray until ink charging is complete.

Note:
If the red ink light flashes after the print head moves to its home (far right) position, the ink cartridge may not be installed properly. Press the ink button two or more times (until the print head moves to the ink cartridge replacement position), open the cartridge cover, and press down the ink cartridge until it clicks into place.

Ink Cartridge Precautions

Warning:
Keep ink cartridges out of the reach of children. Do not allow children to drink from or handle the cartridges.

The ink cartridges are designed to contain any excess ink and prevent leakage. Careful handling is recommended, however. Do not touch the supply port of the ink cartridge or its surrounding area.

If ink gets on your hands, wash them thoroughly with soap and water. If ink gets in your eyes, flush them immediately with water. If discomfort or vision problems continue after a thorough flushing, see a doctor immediately.

Caution:
Don’t remove the cartridge label, or ink will leak.

Don’t remove the green IC chip from the cartridge. Installing a cartridge without an IC chip can damage the printer. Avoid touching the green IC chip, as this can damage the ink cartridge.

If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust, and store it in the same environment as the printer. A valve in the ink supply port makes covers or plugs unnecessary, but the ink may stain items that come into contact with this area of the cartridge. Do not touch the ink supply port or the surrounding area.

We recommend that you do not dismantle ink cartridges or try to refill them. This could damage the print head.

Store ink cartridges upright; the label identifying the color should be on top. Do not store cartridges upside down.

Note:
You cannot print when an ink cartridge is expended even if the other cartridges are not expended. Replace any expended cartridges before printing.

We recommend that you use genuine Epson cartridges and do not refill them. The use of other products may affect your print quality and could result in printer damage.

For best printing results, use up a cartridge within six months of opening the package.

Yields vary considerably based on images printed, print settings, paper type, frequency of use, and temperature. For print quality, a small amount of ink remains in the cartridge after the “replace cartridge” indicator comes on.

Leave the expended cartridge installed until you have obtained a replacement, or the ink remaining in the print head nozzles may dry out.

Aligning the Print Head

If your printouts look grainy or blurry, or you see light or dark lines, you may need to align the print head.

Note:
You may also see lines in your printouts if your cartridges are low on ink or you need to clean the print head.

Before you align the print head, make sure the CD/DVD tray is not inserted in the printer, and make sure the front tray is in the paper (lower) position.

1.	Turn on the printer.

2.	Make sure none of the lights on the printer are indicating errors.

3.	Load several sheets of paper.

4.	Windows: Right-click the printer icon on your taskbar (in the lower right corner of your screen). Select Print Head Alignment.

Macintosh OS X: Open the Applications folder and select EPSON Printer Utility2. Select SP R280 Series in the printer list, click OK, and select Print Head Alignment.

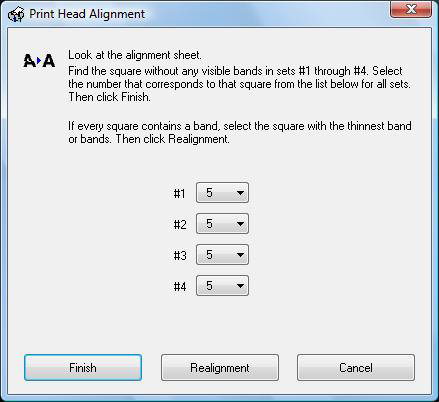

5.	Follow the instructions on the screen to print an alignment sheet. You see a window like this one:

6.	Look at the four sets of patterns in your printout. For each set, look at the printed squares to determine which one in each set is the most even, with no streaks or lines, and enter its number in the corresponding box on the screen.

If every square in a set contains a line or lines, select the square with the thinnest line or lines. Then click Realignment and Print to print another alignment sheet and repeat this step.

7.	Click Finish to close the Print Head Alignment utility.

Cleaning the Printer

To keep your printer working at its best, you should clean it several times a year.

Tip:
To keep your Epson product looking like new, make sure you don’t place anything on top of the cover or use it as a writing surface. If you need to clean the cover, use only a soft, nonabrasive microfiber-type cloth.

Warning:
Don’t touch the gears or any other parts inside the printer.

1.	Load several sheets of letter-size paper.

2.	Press the  paper button to feed and eject paper.

3.	Repeat step 2 if necessary.

Caution:
Do not apply grease to the metal parts under the ink cartridge holder.

Never use a hard or abrasive brush, or benzine, alcohol, or paint thinner for cleaning; they can damage the printer components and case.

Don’t get water on the printer components and don’t spray or apply lubricants, oils or grease inside the printer.

Don’t use any cleaning sheets included with special paper; they may jam inside the printer.

Transporting the Printer

If you need to ship your printer, you must prepare it for transportation by packing the printer in its original box or one of a similar size.

Caution:
When storing or transporting the printer, do not tilt it, stand it up vertically, or turn it upside down. Otherwise, ink may leak from the cartridges.

Leave the ink cartridges installed. Removing the cartridges can dehydrate the print head and may prevent the printer from printing.

1.	Turn on the printer. Wait until the print head returns to the home (far right) position, then close the printer cover.

2.	Turn off the printer and unplug its power cord. Then disconnect the power cord and USB cable from the printer.

3.	Open the printer cover. Secure the print head with tape, as shown below, then close the printer cover.

4.	Remove any paper from the printer, then push down the paper support extension and close the paper support.

5.	Repack the printer and its attachments in the original box using the protective materials that came with them.

Keep the printer level as you transport it.

After transporting the printer, remove the tape securing the print head. Then plug in your printer, turn it on, and test it. If you notice a decline in print quality, clean the print head; if output is grainy or blurry, align the print head.
