A Microsoft® Windows compatible PC (800 MHz or faster recommended)
|
|
•
|
|
•
|
256MB RAM for Windows 2000, Windows XP, or Windows XP Professional x64 Edition (512MB recommended)
|
|
•
|
A Windows-compliant USB port and shielded USB “AB” cable up to 6.5 feet (2 meters) long. Using an improperly shielded USB cable may cause the printer to malfunction.
|
|
•
|
|
•
|
A USB port and a shielded USB “AB” cable up to 6.5 feet (2 meters) long. Using an improperly shielded USB cable may cause the printer to malfunction.
|
|
•
|
|
•
|
Note:
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot guarantee the quality of any non-Epson brand or type of paper. Always test a sample of paper stock before purchasing large quantities or printing large jobs.
|
A4 (8.3 × 11.7 inches)
A6 (4.1 × 5.8 inches)
Letter (8.5 × 11 inches)
Legal (8.5 × 14 inches)
Half-letter (5.5 × 8.5 inches)
4 × 6 inches
5 × 7 inches
3.5 × 5 inches
8 × 10 inches
16:9 (4 × 7.11 inches)
User Defined up to 8.5 × 44 inches
|
|
|
0.003 to 0.004 inch (0.08 to 0.11 mm)
|
|
|
Weight (for plain bond paper)
|
17 lb (64 g/m²) to 24 lb (90 g/m²)
|
|
No. 10 (4.1 × 9.5 inches)
DL (4.3 × 8.7 inches)
C6 (4.5 × 6.4 inches)
|
|
|
20 lb (75 g/m²) to 24 lb (90 g/m²)
|
Note:
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
Poor quality paper may reduce the print quality and cause paper jams or other problems. If you have print quality problems, switch to a higher grade paper.
Do not load curled or folded paper.
Use paper only under these conditions:
Temperature: 59 to 77 °F (15 to 25 °C)
Humidity: 40 to 60% RH
|

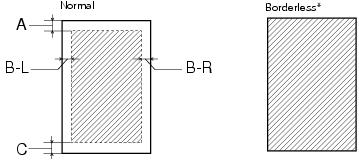

The minimum left margin is 0.20 inches (5.0 mm) for envelopes.
|
|
|
The minimum right margin is 0.20 inches (5.0 mm) for envelopes.
|
|
|
The minimum bottom margin is 0.12 inches (3.0 mm) for single sheets and index cards.
|
|
|
The minimum bottom margin is 0.78 inches (20 mm) for envelopes.
|
|
|
When printing with the borderless feature, print quality may decline in the expanded area. Before printing large jobs using the borderless setting, print a single sheet to confirm printout quality.
|
Note:
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
Always load paper into the sheet feeder with the short edge first. Load envelopes flap edge left with the flap side down.
|
–4 to 104 °F (–20 to 40 °C)
Freezing*: 3.2 °F (–16 °C)
|
|
* Ink thaws and is usable after approximately 3 hours at 77 °F (25 °C).
Note:
We recommend that you use genuine Epson cartridges and do not refill them. The use of other products may affect your print quality and could result in printer damage.
For best printing results, use up a cartridge within six months of opening the package.
Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use, and temperature. For print quality, a small amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.
We recommend that you use genuine Epson cartridges and do not refill them. The use of other products may affect your print quality and could result in printer damage.
For best printing results, use up a cartridge within six months of opening the package.
Cartridge yields vary considerably based on images printed, print settings, paper type, frequency of use, and temperature. For print quality, a small amount of ink remains in the cartridge after the “replace cartridge” indicator comes on. The printer ships with full cartridges and part of the ink from the first cartridges is used for priming the printer.
|
Power consumption
|
ISO/IEC10561 Letter Pattern
|
||
|
Storage: –4 to 104 °F (–20 to 40 °C)
|
|
