Printer Software Settings / For Mac OS 8.6 to 9.x

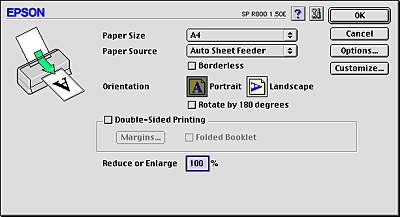

Page Setup Dialog Box

Paper Size

Select the paper size that you want to use. You can also add a custom paper size. To add your own paper size setting, see the following.

Defining a custom paper size

Source

Select Auto Sheet Feeder to Print on normal paper.

Select Roll Paper to print on roll paper.

Select Manual Feed to print on a CD/DVD.

Borderless

Check this box when you want to print without margins.

This feature prints to all four edges of the paper.

Expansion button:
When the Borderless check box is selected, the Expansion button becomes available. Click the Expansion button to open the Borderless Expansion dialog box, where you can control the amount of the image that extends beyond the edges of the paper during borderless printing.

Borderless Expansion slider:
Using the slider on the Borderless Expansion dialog box, you can control the amount of the image that extends beyond the edges of the paper during borderless printing.

For most print jobs, selecting Max is recommended in order to eliminate margins on all sides of the paper. Moving the slider towards Min decreases the amount of the image that extends beyond the edges of the paper; however, as this amount decreases, margins may begin to appear on one or more sides of the paper.
See Borderless Printing

Orientation

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Rotate by 180 degrees: Prints the pages rotated 180 degrees.

Reduce or Enlarge

Use this setting to reduce or enlarge the print size of your document between 25% and 400%.

Roll Paper Option

The Roll Paper Option settings are only available when Roll Paper is selected as the Paper Source setting.

The available settings are described below.

Banner Mode:
Select this mode when you want to print multi-page data continuously rather than as individual pages. When this is selected, the Save roll paper check box is available.

Cut Sheet Mode:
Select this mode when you want to print multi-page data as individual pages, rather than continuously. When this is selected, the Print page frame check box is enabled.

Save roll paper:
Select this check box when you want to save roll paper. When this is selected, the blank portion of the last page of your document is not fed through the printer.

Print page frame:
Select this check box to print a line on the roll paper between pages in a multi-page document, to indicate where the paper should be cut. This feature is useful when it is unclear where the page breaks should be.
