Scanning / How to Scan

Placing Photos and Documents on the Document Table

Removing the scanner lid for thick or large document

Before scanning a document, remember to respect the rights of copyright owners. Do not scan published text or images without first checking the copyright status.

Note:

Keep the document table clean.

Open the scanner lid. Place the original document facing down on the document table. Make sure that the document is properly aligned.

Caution:

Never open the scanner lid beyond its limit by intention.

Note:

Make sure the document is flat against the glass surface; otherwise the image becomes out of focus.

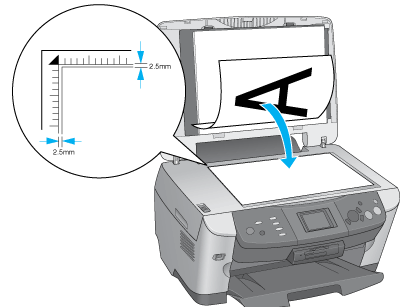

An area of up to 2.5 mm from the edge of the document table glass cannot be scanned.

1. Maximum unreadable area of 2.5 mm
2. Maximum unreadable area of 2.5 mm

Close the scanner lid gently so that the document does not move.

Note:

To scan the document properly, close the scanner lid to prevent interference from the external light.

Do not leave photographs on the document table for an extended period of time. They may stick to the glass of the document table.

Do not place heavy objects on top of this product.

For a thick or large document, you can remove the scanner lid to make it easier to align the document. See Removing the scanner lid for thick or large document.

Removing the scanner lid for thick or large document

When you scan the thick or large document, you can remove the scanner lid.

Note:

When you set the document without the scanner lid, make sure to press the document from above and make it flat.

When you press the document, do not move the document and not to add too much pressure.

Removing and installing the scanner lid

Make sure this product is turned off.

Disconnect the TPU cable.

Open the scanner lid and pull the document cover straight up.

When installing the scanner lid, install it in the reverse order of removing it.

Caution:

Do not use excessive force on the scanner lid, and do not twist it diagonally. Doing so may damage the document cover.

Do not open and shut the scanner unit without the scanner lid. It might cause the injury and the breakdown.
