Load Paper in the Front Paper Cassette

You can print documents and photos on a variety of paper types and sizes, including borderless photos.

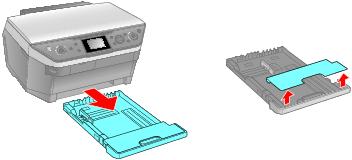

1.	Pull out the paper cassette and remove the cover.

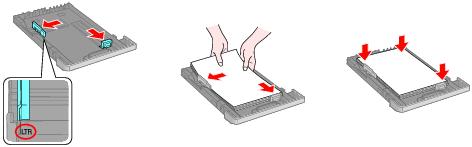

2.	Press in the tab on each edge guide and slide them to fit the paper you are loading.

3.	Insert paper, glossy or printable side down, with the short edge facing the back of the paper cassette.

4.	Slide the edge guides against the paper, but not too tightly.

Tip:
Load only the recommended number of sheets.
Load paper short edge first, no matter which way your document faces.
Load letterhead or pre-printed paper with the top edge facing the back of the paper cassette.
Do not load paper above the arrow on the edge guide.
Check the paper package for any additional loading instructions.

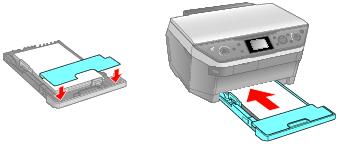

5.	Replace the paper cassette cover.

6.	Insert the paper cassette back into the printer.

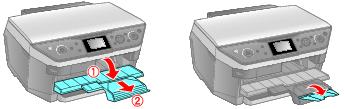

7.	Open and extend the output tray.
