EPSON Support
Epson Stylus C62
Date: 2002/09/24
FAQ Version 1.0                                                                                                     Return to EPSON Stylus C62 Support Menu

Index of Frequently Asked Questions
  • Product Controls
  • General Printer Questions and Answers
  • Printer Driver Questions
  • Ink Cartridge Questions
  • Printing Questions
  • Windows Questions
  • Macintosh Questions
  • Diagnosing Printer Problems
  • Print Media Questions
    General Printer Questions and Answers
  • Q: Where can I find the printer manual?
  • Q: Which computer interfaces does the Stylus C62 support?
  • Q: Is there any difference in printing performance between the parallel and USB interfaces?
  • Q: What are the system requirements for using this printer with a PC?
  • Q: What are the system requirements to use this printer with a Macintosh?
  • Q: What steps need to be taken when transporting the Printer?
  • Q: Does this printer support Adobe Postscript fonts?
  • Q: How can I clear the printer's buffer?
  • Q: What is RPM technology?
  • Q: What is Exif?
  • Q: Who can I contact for assistance with the creative software that comes with the printer?

    Ink Cartridge Questions
  • Q: Which ink cartridges should I use with this printer?
  • Q: Can the Epson ink cartridges be refilled or can 3rd party ink cartridges be used without voiding the warranty?
  • Q: How do I install my ink cartridge for the first time?
  • Q: How do I replace an ink cartridge when the ink out light is flashing or on?
  • Q: How long should an ink cartridge remain in the printer if it's not used often.
  • Q: How do I know when the ink cartridges need to be replaced?
  • Q: Can the printer still print if a cartridge is empty or not installed?
  • Q: I installed new ink cartridges and the printer is now doing continuous cleaning cycles. Is this normal?

    Return to the index
    Printer Driver Questions
  • Q: How can I obtain the latest printer drivers?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows XP?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows 2000?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows 98 and Windows Me?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows 95?
  • Q: How do I remove the printer driver from Windows?
  • Q: How do I install the driver from the EPSON CD-ROM in my Macintosh OS 8.5.1 to 9.x?
  • Q: How do I install a printer driver from the EPSON CD-ROM on a Macintosh with OS X?
  • Q: How do I uninstall the printer driver from my Macintosh?
  • Q: Is this printer compatible with MS-DOS based applications?

    Return to the index
    Windows Questions
  • Q: How do I install the driver from the EPSON CD-ROM in Windows XP?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows 2000?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows 98 and Windows Me?
  • Q: How do I install the driver from the EPSON CD-ROM in Windows 95?
  • Q: How do I remove the printer driver from Windows?
  • Q: What are the system requirements for using this printer with a PC?
  • Q: How can I maximize my print speed from my PC?
  • Q: Why can't I print from a particular Windows application in color?
  • Q: How can I stop the Separator Page from printing in Windows ME?
  • Q: Is there any difference in printing performance between the parallel and USB interfaces?

    Return to the index
    Macintosh Questions
  • Q: How do I install the driver from the EPSON CD-ROM in my Macintosh OS 8.5.1 to 9.x?
  • Q: How do I install a printer driver from the EPSON CD-ROM on a Macintosh with OS X?
  • Q: How do I uninstall the printer driver from my Macintosh?
  • Q: What are the system requirements to use this printer with a Macintosh?
  • Q: I installed the printer driver on my Macintosh, but it isn't showing up in the Chooser. What should I check?
  • Q: Why am I getting a memory error message when I try to print from my Macintosh?
  • Q: A portion of my image doesn't print when I'm printing from my Macintosh.
  • Q: Whenever I try to print from my Macintosh, I get a type 11 error and my system locks up. What's wrong?
  • Q: I am getting the message "Sorry SC62 cannot be used" when I try to select the "SC62" icon in the Chooser. What should I do?
  • Q: Does the Stylus C62 work with Apple's Desktop Printing?

    Return to the index
    Diagnosing Printer Problems
  • Q: What should I do if the printed image has horizontal banding?
  • Q: The printer won't feed paper. What should I do?
  • Q: Nothing prints. What should I do?
  • Q: The printer sounds like it is printing, but no ink is on the paper. What's wrong?
  • Q: My printouts are missing color and/or black print. How can I resolve this issue?
  • Q: Vertical lines are not aligned or vertical banding appears. How do I align the print head?
  • Q: How can I stop the printer from feeding multiple pages at the same time?
  • Q: Sometimes the paper doesn't eject all the way or is wrinkled. What should I do?
  • Q: Why are my margins incorrect?
  • Q: How can I increase my print speed from my PC?
  • Q: Why does the image look inverted, as if viewed in a mirror?
  • Q: Is there a printer self test to determine if a problem is caused by the printer?

    Return to the index
    Printing Questions
  • Q: Can I select the print resolution in the driver software?
  • Q: What is RPM technology?
  • Q: What is 5760 x 720 Optimized DPI Using RPM technology?
  • Q: What do you mean by manageable file sizes?
  • Q: How do I select 5760 x 720 Optimized DPI Using RPM technology?
  • Q: Does Epson recommend Photo RPM for printing everyday photos?
  • Q: What should I do if the printed image has horizontal banding?
  • Q: The colors of my image on my monitor do not match the output from my printer. What is wrong?
  • Q: The quality of my printed output is unacceptable. What can I do to improve this?
  • Q: Why is my printer printing colored pages in black and white?
  • Q: Why can't I print web pages the way they are displayed on my monitor?
  • Q: Can this printer be setup to print in Black by default instead of Color?
  • Q: Why does my printer print out blank pages?

    Return to the index
    Print Media Questions
  • Q: Does the type of paper I use really make a difference?
  • Q: How do you select the correct media type?
  • Q: How should I preserve my pictures?
  • Q: Can I use the cleaning sheets that are included with any special media I purchase?
  • Q: Can I use sheet labels with this printer?
  • Q: What is the correct way to load transparency paper?
  • Q: Does this printer support borderless printing?
  • Q: How do I print on envelopes with this printer?

    Return to the index
    Product Controls: Stylus C62


    Power Button
    Turns power on and off. Wait until the printer stops printing and press the power button down for 2 seconds to power off the printer. Never use a power strip, or surge protector to turn off the printer, as the print head will not be in the proper position. It may be harmful to your printer if you turn the printer off using an external switch. The power light is on when the printer is ready to print. It flashes when the printer is receiving a print job, charging ink, or cleaning the print head. It also flashes when the print head moves to the ink cartridge replacement position.

    Maintenance Button
    If your printouts are unexpectedly light, or dots or lines are missing from the image, you may need to clean the print head. This unclogs the nozzles so they can deliver ink properly. Print head cleaning uses ink, so clean it only if quality declines.

    To clean the print nozzles, make sure the printer is turned on but not printing, and the Ink-Out light is off. Press and hold the Maintenance button for three seconds. Cleaning takes about 30 seconds, during which the printer makes some noise and the power light flashes. When the cleaning cycle is complete, the power light will stop flashing. A more thorough nozzle cleaning is performed through the printer driver software utilities. This is available only when your printer is connected directly to your computer, not over a network.

    Ink Replacement Button
    Press the Ink Replacement button to start the cartridge replacement procedure when the ink light is on or blinking.

    Return to the index
    Q: Where can I find the printer manual?

    A: Your printer software CD-ROM includes an electronic Reference Guide for your printer. The manual is in HTML format, so you need a browser such as Internet Explorer 4.0 or later or Netscape Navigator 4.0 or later to view it. If you are using a different browser, the pages may not display correctly. (A browser is not included on the printer software CD-ROM.)

    Return to the index
    Q: Which computer interfaces does this printer support?

    A: The printer comes with a built in IEEE-1284 parallel port and USB port.

    Return to the index
    Q: Is there any difference in printing performance between the parallel and USB interfaces?

    A: Yes, USB is the recommended interface for the highest speed. When running Windows 98 or ME the parallel performance will be about equal or a little slower than USB. The design of Windows 2000 and Windows XP (which is based on Windows 2000) has a slower parallel printing performance. USB is the best choice of interfaces and will keep the printer running at full engine speed.

    Return to the index
    Q: What steps need to be taken when transporting the Printer?

    A: If you move your printer some distance, you need to prepare it for transportation in its original box or one of a similar size. To avoid damage, always leave the ink cartridges installed when transporting the printer. Follow these steps:

    1. Turn on the printer and wait until it completes its initialization and stops moving. Then press the power button to turn the printer off.
    2. Unplug the power cord.
    3. Disconnect the printer cable from the printer.
    4. Remove any paper from the printer and remove the paper support.
    5. Open the printer cover. Secure the ink cartridge holder to the printer with tape.



    Then close the printer cover. Be sure to remove the tape after installing the printer in its new location.
    6. Push in the output tray extensions and close the tray.
    7. Repack the printer and attachments in the original box using the protective materials that came with it. Be sure to keep the printer level as you move it.

    After transporting the printer, remove the tape securing the print head and test your printer. If you notice a decline in print quality, clean the print head. If output is misaligned, align the print head.

    Return to the index
    Q: Does this printer support Adobe Postscript fonts?

    A: No, this printer does not support Adobe Postscript fonts. However, third party software manufacturers may be in the process of developing Postscript solutions.

    Return to the index
    Q: How can I clear the printer's buffer?

    A: Make sure that you cancel the print job from the computer before you try to clear the printer's buffer. Also, make sure the printer is no longer printing. After canceling the print job from the computer, power off the printer, wait 10 seconds, and then plug in the printer again.

    Return to the index
    Q: What is Exif?

    A: Exif (Exchangeable Image File) Print format support, is an international standard which ensures the accurate reproduction of your digital camera images. With Exif Print, special image settings such as white balance, contrast, color saturation, and exposure time are saved in your digital photo files. If your digital camera supports Exif Print, you can use this technology when you print with Exif Print enabled applications such as EPSON Software Film Factory.

    Return to the index
    Q: Who can I contact for assistance with the creative software that comes with the printer?

    A: Epson Software Film Factory

    Online: http://support.epson.com

    Return to the index
    Q: What are the system requirements for using this printer with a PC?

    A: PC Requirements
  • A Microsoft Windows compatible PC with a Pentium or better processor, 233MHz or faster recommended
  • Microsoft Windows 95, Windows 98, Windows Me, Windows 2000, or Windows XP
    (Note: Windows 95 supports only the parallel port interface)
  • 64MB of RAM (128MB or more recommended)
  • At least 100MB of free hard disk space (200MB or more recommended)
  • VGA or better display adapter and monitor, SVGA for Windows XP
  • CD-ROM or DVD drive for installing the printer software
  • One of the following:

    For USB connection:
    A computer running Windows 98, Windows Me, Windows 2000, or Windows XP with a Windows-compliant USB port and a shielded USB "AB" cable up to 6.5 feet (2 meters) long.

    Caution: Using an improperly shielded USB cable - especially more than 6.5 feet (2 meters) long - may cause the printer to malfunction.

    For parallel connection:
    A high-speed, bi-directional, IEEE-1284 compliant parallel cable (6 to 10 feet long) with a D-SUB, 21-pin, male connector for your computer and a 36-pin Centronics® compatible connector for the printer.

    A high speed, bi-directional parallel port, 6 - 10 ft. IEEE 1284 compliant parallel cable (not included).

    Return to the index
    Q: What are the system requirements for using this printer with a Macintosh computer?

    A: Macintosh Requirements
  • A Power Macintosh ® G3, G4, iMac ™ or eMac ™ with a built-in USB port
  • Mac ® OS 8.5.1 through OS X 10.1 or higher. (Mac OS 9.0 or later recommended)
  • For Mac OS 8.5.1 through 9.x: 32MB RAM (64MB recommended)
    For Mac OS X: 128MB RAM (256MB recommended)
  • At least 100MB of free hard disk space (200MB recommended)
  • VGA display or better
  • CD-ROM or DVD drive for installing the printer software
  • A shielded USB "AB" cable up to 6.5 feet (2 meters) long
    Using an improperly shielded USB cable-especially a cable more than 6.5 feet (2 meters) long-may cause the printer to malfunction.

    Return to the index
    Q: How can I obtain the latest printer drivers?

    A: You can download the latest Epson driver for your printer from Epson's web site http://support.epson.com. You may also contact the Driver Fulfillment support line at (562) 276-4367 to request a printer driver. A shipping and handling charge may be applied to drivers sent by mail.

    Return to the index
    Q: How do I install the driver from the EPSON CD-ROM in Windows XP?

    A: Follow these steps to install the printer driver and software:

    1. Make sure your printer is connected and turned on. Then turn on your computer.
    2. Wait for Windows to detect your printer connection and display a screen saying 'Welcome to the Found New Hardware Wizard', This wizard helps you install software for C62 Series.



    Note: If this screen doesn't appear, make sure your printer is turned on and connected.

    3. Put the EPSON CD-ROM in your CD-ROM or DVD drive and wait a few seconds for the CD-ROM to be recognized. Your printer software installs automatically and various messages appear on the screen.

    4. Click Finish when you see the Completing Found New Hardware Wizard screen.



    5. You see the license agreement. Read the agreement and click 'Agree' to continue installation.

    You see the Options Menu. Continue with the instructions below under "Finishing Windows Installation" to complete your software installation.

    Finishing Windows Installation
    1. When you see the Options Menu screen, make sure you have paper in the printer, then click Print a Test Page to check that your printer is set up correctly.
    2. Optionally, click 'Install EPSON Software Film Factory' and follow the on-screen instructions.
    3. Click 'Install Manual and Printer Movies' and follow the on-screen directions to install the EPSON Printer Information Center on your desktop.
    4. When you're finished, click 'Exit' to close the Options Menu.
    5. When you see the EPSON Product Registration screen, register your printer as instructed, then remove your CD-ROM.

    Return to the index
    Q: How do I install the driver from the EPSON CD-ROM in Windows 2000?

    A: Before you start, make sure your printer is set up, connected to your computer, and turned on, as described on the Start Here sheet. Installation takes place in several phases. Follow these steps to install the printer driver and software:

    1. Turn on your computer. (Make sure your printer is still on.)

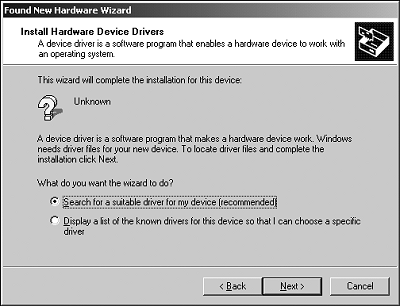

    2. Wait until you see the Found New Hardware Wizard screen.



    Note: If this screen doesn't appear, make sure your printer is turned on and connected.

    3. After a moment, click 'Next'. You see a screen indicating that Windows has found an unknown device.



    4. Click 'Next'.

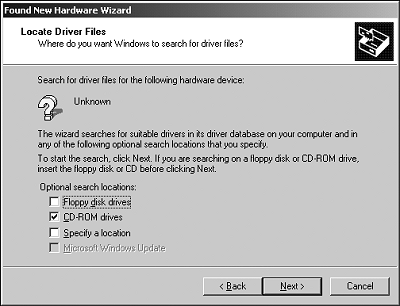

    5. Select 'CD-ROM drives', Click 'Next' again on the following screen. Wait while the files are copied to your computer.



    6. Click 'Finish' when you see the Completing the Found New Hardware Wizard screen.



    7. Read the license agreement, click Agree, then continue with the Options Menu to continue the installation.

    8. Make sure you've loaded letter-size paper in your printer, then click 'Print a Test Page' to check that your printer is set up correctly.

    9. Optionally, click Install EPSON Software Film Factory and follow the on-screen instructions to install the software.

    10. Click 'Install Manual and Printer Movies' and follow the on-screen directions to place a shortcut to the EPSON Printer Information Center on your desktop.

    11. Click 'Exit'. When you see the EPSON Product Registration screen, register your printer as instructed.

    You're ready to start printing!

    Return to the index
    Q: How do I install the driver from the EPSON CD-ROM in Windows 98 and Windows ME?

    A: Before you start, make sure your printer is set up, connected to your computer, and turned on. Follow these steps to install the printer driver and software:

    1. Turn on your computer. (Make sure your printer is still on.) Wait until you see the Add New Hardware Wizard.

    Windows 98


    Windows Me


    2. Put the EPSON CD-ROM in your drive.

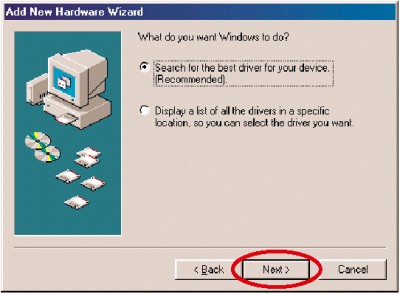

    3. After a moment, click Next on the Add New Hardware Wizard screen.

    4. Windows Me: installation proceeds automatically. Click 'Finish' when installation halts, then go to step 7.

    Windows 98: click the 'Search for' option then click next. Continue with step 5.

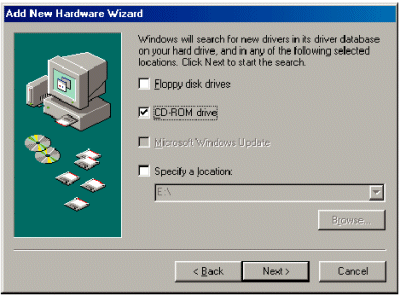

    5. You see a screen asking where you want Windows to search. Click CD-ROM drive. Then click 'Next'.



    6. Click 'Next' on the following screen.



    Installation proceeds automatically. When installation halts, click 'Finish' and go to step 7.

    7. Your computer detects your printer connection a second time and you see a screen like this:




    8. Windows Me: Click 'Next' then click 'Finish'. Installation proceeds automatically.

    Windows 98: Click 'Next' on each of the four screens that follow (not shown), then click 'Finish'. Installation proceeds automatically.

    9. At the final Add New Hardware Wizard screen, click 'Finish'.



    Then wait while the files are copied to your computer.

    10. You see the license agreement. Read the agreement and click Agree to continue installation.

    You see the Options Menu. Continue with the instructions below under "Finishing Windows Installation" to complete your software installation.

    Finishing Windows Installation
    1. When you see the Options Menu screen, make sure you have paper in the printer, then click Print a Test Page to check that your printer is set up correctly.
    2. Optionally, click Install EPSON Software Film Factory and follow the on-screen instructions.
    3. Click Install Manual and Printer Movies and follow the on-screen directions to install the EPSON Printer Information Center on your desktop.
    4. When you're finished, click Exit to close the Options Menu.
    5. When you see the EPSON Product Registration screen, register your printer as instructed, then remove your CD-ROM.

    Return to the index
    Q: How do I install the driver from the EPSON CD-ROM in Windows 95?

    A: Follow these steps to install the printer software:
    Before you begin, complete the instructions on the Start Here sheet for setting up your printer.

    Note: Use a parallel cable to connect the printer to your computer. Windows 95 does not support a USB connection.

    1. Turn on your computer. (Make sure your printer is still on.)
    2. Put the EPSON CD-ROM in your drive.

    Caution: If you see the Add New Hardware Wizard, click Cancel. You can't install your software that way.

    3. Read the license agreement and click Agree to continue with installation.
    4. When you see the Main Menu screen, click Install Printer Driver. Wait while the files are copied to your computer.
    5. Click OK when you see a message that setup is complete.
    6. Optionally, click Install EPSON Software Film Factory and follow the on-screen instructions to install the software.
    7. Click Install Manual and Printer Movies and follow the on-screen directions to place a shortcut to the EPSON Printer Information Center on your desktop.
    8. Click Exit. When you see the EPSON Product Registration screen, register your printer as instructed.
    9. Restart your computer. You're ready to start printing!

    Return to the index
    Q: How do I remove the printer driver from Windows?

    A: First disconnect the printer from the computer and then follow these steps to remove the driver software.

    1. Click Start, and select Programs or All Programs.
    2. Point to Epson or EPSON Printers, then select EPSON Printer Software Uninstall.
    3. In the next window, make sure EPSON Stylus C62 Series is selected and click OK. Then follow the on-screen instructions.
    4. Restart your computer
    5. Connect the printer and turn on the power
    6. If you see the Add New Hardware Wizard, click Cancel
    7. Click on the Epson installer file on the EPSON driver CD-ROM, and reinstall your software.

    Return to the index
    Q: How do I install the driver from the EPSON CD-ROM in my Macintosh OS 8.5.1 to 9.x?

    A: Follow these steps:

    1. Turn on your Macintosh. Put the EPSON CD-ROM in your CD-ROM or DVD drive.
    2. Double-click EPSON on your desktop, if necessary, then double-click EPSON in the window that opens.



    3. Read and agree to the license agreement to continue the installation.
    4. Click Install Printer Driver and Utilities and follow the on-screen instructions to install the software and restart your Macintosh.



    5. After your Macintosh restarts, register your printer with EPSON as instructed.
    6. Open the Chooser and select your C62 Series printer icon.



    7. Select your USB port and turn on background printing. Then close the Chooser.



    8. Optionally, click Install EPSON Software Film Factory on the Main Menu and follow the on-screen instructions to install the software.

    NOTE: You may have to double-click EPSON in your CD-ROM window to open the Main Menu.

    9. Click Install Manual and Printer Movies and follow the on-screen instructions to install the EPSON Printer Information Center on your desktop.
    10. When you're finished, click Exit. Then remove the CD-ROM and keep it in case you need to reinstall any software later.
    You're ready to print!

    Return to the index
    Q: How do I install a printer driver from the EPSON CD-ROM on a Macintosh with OS X?

    A: Follow these steps:

    1. Make sure your printer is on, then start your Macintosh in OS X.
    When you see your Macintosh icons, put the EPSON CD-ROM in your drive.
    2. Double-click the EPSON CD-ROM icon to open its window. Then double-click C62Series.



    3. If you set up an administrator password when you installed OS X, you see the Authorization screen.
    Click the lock icon, enter your administrator password, and click OK.



    At the next screen, click Continue.
    4. Read the license agreement and click Continue, then click Agree.
    5. Select the OS X drive where you want to install your printer software, then click Continue.
    6. Click Install on the Easy Install screen and follow the on-screen instructions to install the printer software and restart your Macintosh.
    7. Open the Applications folder, then open the Utilities folder. Double-click Print Center.

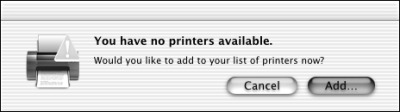

    8. If you see a message that you have no printers available, click Add.



    9. If your printer is already listed in the Printer List, close Print Center and go to step 10. Otherwise, click Add Printer. Then select EPSON USB in the pull-down menu at the top of the window, select your printer in the Printer List, and click Add. Close Print Center.



    10. Optionally, double-click the Film Factory Installer icon and follow the on-screen instructions to install the software.
    11. Double-click the Printer Movies and Manual icon and follow the instructions to place a shortcut to the EPSON Printer Information Center on your desktop. (You may have to close the Film Factory window to see the icon.)
    Now you're ready to print!

    Note: To print from Macintosh Classic applications as well as OS X applications, start your Macintosh in OS 9 and install the OS 9 printer software.

    Return to the index
    Q: How do I uninstall the printer driver from my Macintosh?

    A: Follow these steps to remove the driver software:

    Macintosh OS 8.5.1 to 9.x
    1. Insert your printer software CD-ROM in your drive.
    2. Double-click the EPSON icon in your CD-ROM window. (You may need to double-click the EPSON CD-ROM icon on your desktop to open the window.) You see the Main Menu.
    3. Click Install Printer Driver. On the Installer screen, click the arrow in the Easy Install list at the top and select Uninstall. Then click the Uninstall button at the bottom and follow the on-screen instructions.
    4. Restart your Macintosh, then you can reinstall your software.

    Macintosh OS X
    1. Open the Applications folder, then the Utilities folder.
    2. Double-click Print Center to open it.
    3. Select C62 Series(USB) in the printer list and click the Delete button.
    4. Restart your Macintosh, then you can reinstall your software.

    Return to the index
    Q: Is this printer compatible with MS-DOS based applications?

    A: If you are trying print from a DOS based application, the printer may not be completely compatible due to the ESC/P raster printer language that is used by your printer. When printing from DOS, color printing is not available. You will need to use the control panel of the printer to replace ink cartridges and perform other maintenance functions.

    Return to the index
    Q: I installed new ink cartridges and the printer is now doing continuous cleaning cycles. Is there something wrong with my printer?

    A: When an ink cartridge is installed into the printer, it will take approximately one minute to charge the ink system and initialize the printer. This initialization is a normal and necessary process. Never turn off the printer until the printer has not moved or made noise for over 5 minutes. If it does not stop, the printer may need service and you should contact Epson technical support for assistance.

    Return to the index
    Q: Which ink cartridges should I use with this printer?

    A: This printer can use only the following Epson ink cartridge part numbers:

    Cartridge Ink Color Part Number
    Black T040120 (U.S.)
    Color T041120 (U.S.)

    The packaging may be labeled T040 or T041.

    Order ink cartridge supplies on-line now!

    In Canada, please call (800) 873-7766 for dealer referral.


    Return to the index
    Q: Can the Epson ink cartridges be refilled or can 3rd party ink cartridges be used without voiding the warranty?

    A: EPSON does not recommend refilling or using 3rd party ink cartridges. Using these products will not void their product's original warranty, however, if these 3rd party products cause a failure, the repair of that failure will not be covered under warranty.

    Return to the index
    Q: How do I install my ink cartridge for the first time?

    A: First ink cartridge installation takes approximately two minutes.

    1. Turn the printer on. The ink cartridge holders will move to the installation position.

    2. Unwrap the ink cartridges then remove ONLY the yellow tape seal from the top of the ink cartridges. If you accidentally remove anything but the yellow seal you cannot use the cartridge or it will damage the printer.



    Don't touch the green circuit board on the back of the cartridge; you may inhibit normal operation and printing.

    Lower the new cartridge down into the holder making sure the tabs rest on the hooks in back.



    After the ink cartridges have been inserted into their holders, push down the ink cartridge clamps until they lock in place.



    Press the Ink Replacement button, located next to the power button, to begin charging the ink delivery system and close the printer cover.



    Charging takes about 1.5 minutes and is complete when the power light stops flashing. Don't turn off the printer until the power light stops flashing.

    Return to the index
    Q: How do I replace an ink cartridge when an ink low or out condition occurs?

    A: Follow the steps below to replace an ink cartridge:

    1. Make sure the printer is on but not printing. Raise the printer cover, then press down the Ink Replacement button until the print heads move towards the center.




    2. Pull up the empty ink cartridge clamp all the way. The cartridge rises up from its holder and should be disposed.



    3. Unwrap the new ink cartridge, being careful not to touch the green chip on the back of the cartridge, then remove ONLY the yellow tape seal from the top of the cartridge. If you accidentally remove anything but the yellow seal you cannot use the cartridge or it will damage the printer.



    4. To install the new cartridge, tilt the ink cartridge forward slightly as you lower it into its holder. Hang the tabs at the back of the cartridge on the hooks on the holder clamps. Don't place the cartridge tabs under the hooks on the holder clamp; you may damage the clamp when you close it.



    5. Install the ink cartridge and press the Ink Replacement button to begin charging the ink delivery system.



    6. Charging takes about a minute and is complete when the power light stops flashing and the error light goes out. For more information on installing an ink cartridge please refer to your Start Here Poster or your Printer Basics Manual.

    Return to the index


    Q: How long should an ink cartridge remain in the printer if it's not used often.

    A: When an installed ink cartridge is more than six (6) months old, you may need to replace it if you notice that your printouts don't look as good as they used to. If print quality doesn't improve after cleaning and aligning the print head, you should replace the ink cartridges.

    Order ink cartridge supplies on-line now!

    Return to the index
    Q: How do I know when the ink cartridges need to be replaced?

    A: When the printer's red Error light flashes, an ink cartridge is low on ink. This is a good time to make sure you have a new cartridge handy. When the Error light stays on, the cartridge is empty and will need to be replaced. The Error light also flashes when there is a paper jam so make sure to check your paper before changing the ink cartridge.

    You can click on the EPSON Status Monitor to check which cartridge is low or empty. To check your ink supply, do one of the following:

    Windows:
    Double-click the printer icon on your taskbar (in the lower right corner of your screen). You see a window showing ink levels. You can also double-click the Ink Monitor icon on the taskbar. The window that appears lets you check ink levels and also order cartridges online. Just click the Buy Now button to launch your web browser.




    Macintosh:
    OS 8.6 to 9.x:
    Choose File > Print. Click the ink icon.

    OS X:
    Choose Applications>EPSON Printer Utility>C62 Series>EPSON Status Monitor.



    Order ink cartridge supplies on-line now!

    Return to the index
    Q: Can the printer still print if a cartridge is empty or not installed?

    A: No. The printer will not operate if any cartridge is empty or removed. It's best to always have an extra cartridge on hand.

    Order ink cartridge supplies on-line now!

    Return to the index
    Q: I installed new ink cartridges and the printer is now doing continuous cleaning cycles. Is this normal?

    A: When an ink cartridge is installed into the printer, it will take approximately one minute to charge the ink system and initialize the printer. While the ink is charging the power light will flash. Never turn off the printer while the power light is flashing (unless the power light is flashing AND the printer has not moved or made noise for over 5 minutes). This initialization is a normal and necessary process. If the printer initialization does not stop after 5 minutes turn the printer off and contact Epson technical support for assistance.

    Return to the index
    Q: Can I select the print resolution in the driver software?

    A: Rather than selecting the print resolution in the driver, you select the following types of documents and the resolution will be automatically selected depending on the paper type you choose to print on:

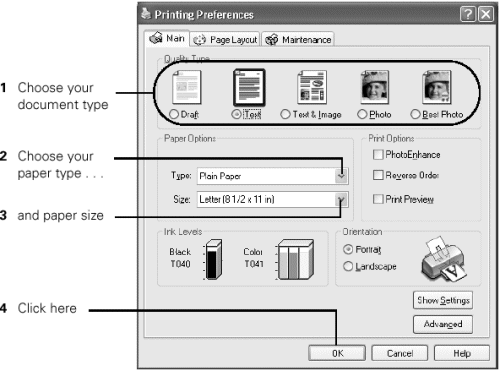

    Windows:
  • Draft: For rough drafts on plain paper. Saves ink.
  • Text: For text-only documents, like letters or reports. Delivers high-quality text printing.
  • Text & Image: For documents that have both text and images, like newsletters.
  • Photo: For photos and graphics, when you want good quality with faster printing.
  • Best Photo: For photos or graphics, when you need highest quality printing.
  • For RPM technology select Photo RPM in the 'Advanced' menu.

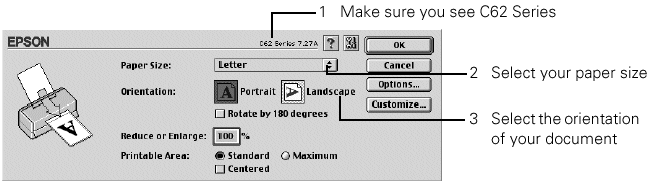

    Macintosh:





    Depending on the paper type you choose to print on, the selections will be limited to correspond to the paper type.

    Return to the index
    Q: What is RPM technology?

    A: RPM (Resolution Performance Management) is Epson's technology for optimizing the placement of up to eight ink droplet sizes (six for 4-color printer models) on a grid up to 5760 dpi to deliver superior photo quality.

    Return to the index
    Q: What is 5760 x 720 optimized dpi using RPM technology?

    A: 5760 x 720 optimized dpi is the highest addressable resolution that yields superior image quality and performance while keeping input files to a manageable size.

    Return to the index
    Q: What do you mean by manageable file sizes?

    A: Epson printers typically need a file input size between 240 and 300 pixels per inch (ppi) to achieve maximum print quality.
    An 8" x 10" photo at 240 ppi is approximately 13 MB. This is a manageable file size for most users.

    Return to the index
    Q: How do I select 5760 x 720 Optimized DPI Using RPM technology?

    A: From Advanced menu on the printer driver, select Photo RPM. This setting is not available for all media types. For printers that support 5760 x 720, select Super Microweave to achieve the highest print quality.

    Windows:







    Return to the index
    Q: Does Epson recommend Photo RPM for printing everyday photos?

    A: For most photos and other print tasks, we recommend the default print settings for the paper type users have selected. By using the default print settings, users achieve both excellent image quality and faster print speeds. With Microsoft Windows, simply select the print task (Text, Photo, etc.) and then the paper type (Matte paper, Glossy Photo paper, etc). The printer driver will automatically set the appropriate print settings. Photo RPM is available in the Advanced menu for those exceptional print tasks where image quality is the primary consideration.

    Return to the index
    Q: What should I do if the printed image has horizontal banding?

    A: Make sure you are using a compatible paper type. Verify the printable side of the paper is face up in the sheet feeder. Select your paper type in the printer driver menu and let the driver automatically set the print settings. Make sure the paper thickness lever is in the correct position for your paper type. Make sure your ink cartridges are not outdated. They should be replaced six months after installing them in the printer to ensure the ink is fresh.

    If necessary, follow these steps to run the head cleaning utility and nozzle check:

    1. Make sure the printer is turned on but not printing, and the red Error light is off. (If the Error light is flashing or on, you may need to replace an ink cartridge)

    2. Windows:
    Right-click the printer icon on your taskbar (in the lower right corner of your screen). Select Head Cleaning.

    Macintosh OS 8.5.1 to 9.x:
    Open your application's File menu and choose Page Setup or Print. Click the Utility button, then click the Head Cleaning button.

    Macintosh OS X:
    Open the Applications folder and double-click EPSON Printer Utility. Select C62 Series in the printer list, click OK, and select Head Cleaning.

    3. Follow the instructions on the screen to clean the print head. Cleaning takes about 30 seconds, during which the printer makes some noise and the green power light flashes.

    Caution: Never turn off the printer while the power light is flashing, unless the printer hasn't moved or made noise for more than 5 minutes.

    4. When the green power light stops flashing, make sure plain paper is loaded in the printer. Then click Print nozzle check pattern (Windows) or Confirmation (Macintosh) and follow the on-screen directions to print a nozzle check.

    5. If the nozzle check pattern has no gaps in its lines, click Finish.



    If the pattern has any gaps, click Clean to clean the print head again.



    If you don't see any improvement after cleaning three or four times, check the solutions beginning on page 43 of your printer basics manual. You can also turn the printer off and wait overnight - this allows any dried ink to soften-and then try cleaning the print head again.

    Return to the index
    Q: The colors of my image on my monitor do not match the output from my printer. What is wrong?

    A: First you must have an understanding of how color is produced. A monitor displays color by transmitting Red, Green and Blue (RGB) light into your eyes. A printer uses existing light to reflect Cyan, Magenta, Yellow and black (CYMK) light into your eyes. It is virtually impossible to have these two different color types (transmissive and reflective) match perfectly. Also, due to its transmissive nature, the monitor is able to display a much wider range of colors than a reflective product, such as a piece of paper with ink on it.

    Most monitors are not calibrated for correct color display out of the box; they have to be calibrated to produce accurate colors. Adobe PhotoShop (not included) includes a basic monitor calibrator to do this; it is the Adobe Gamma utility. This utility is contained in the Control Panel in Windows and on the Macintosh.

    Also, what type of color matching system (CMS) are you using when printing your image? The color matching system can greatly affect the output color of your image. For information on how to use the various color management system available, please check the CMS user documentation or the web site of the manufacturer.

    To ensure that the images your Epson Color printer produces are as close as possible to the images displayed on your monitor you should do the following:

    Calibrate your monitor
    Experiment with various Color Management Systems
    Try using the ICM (Windows 95 or 98) or ColorSync (Macintosh) setting

    To print a file saved in CMYK (cyan, magenta, yellow, and black) format with accurate colors, you first need to convert the file to RGB format. Your printer software automatically converts RGB files to your printer's 4-color CMYK format. To print with the correct colors, convert any CMYK-format input files to RGB format before printing. For the best results, create your original print files in the RGB color space.

    Return to the index
    Q: The quality of my printed output is unacceptable. What can I do to improve this?

    A: First, if you are using coated ink jet paper, verify that the printable side of the paper is face up, and check the type of paper being used. EPSON brand paper, which is designed for the Stylus C62 printer, delivers the best printed output. If your output is faint, check the printer driver to make sure you have selected a print resolution other than Economy.

    The resolution of your image may also be too low. Increase the image resolution using your image-editing software, or decrease the size of the image. When scanning, scan at 240-300 dpi if you wish to print images at their actual size. If you intend to increase the size of the printed image, scan at a higher dpi.

    Make sure the Media Type setting matches the paper or media loaded. Also, the Color Adjustment Mode options may be set incorrectly for your document type. Let the printer driver automatically select the settings for the best quality.

    Verify that you are using the correct printer driver for your printer model.

    Make sure your ink cartridges are not outdated. They should be replaced six months after installing them in the printer to ensure the ink is fresh.

    Try testing the printer with another computer and cable. This will eliminate the possibility of a defective printer cable, or software issue. If you're still experiencing a problem, try replacing the ink cartridges with genuine EPSON ink cartridges.

    Return to the index
    Q: Why is my printer printing colored pages in black and white?

    A: Your printer software may be set for black only mode.
    1. Click on ‘START/SETTINGS/PRINTERS’
    2. Right click on the ‘EPSON STYLUS C62’ icon
    3. Click on ‘PROPERTIES’
    4. Click on the ‘MAIN’ tab
    5. Click on ‘COLOR’ under the ink section
    6. Click ‘APPLY’
    7. Click ‘OK’
    8. Try printing

    Return to the index
    Q: Why can't I print web pages the way they are displayed on my monitor?

    A: If you're printing from a web browser, especially when viewing web pages using frames, the pages may not print correctly due to the web page design. This is not the fault of the printer or printer setup. Often there is nothing that you can do to print the complete page as displayed. Check to see if there is a Printer Friendly Version icon on the web page that you can click on. Try a different web browser or a newer version (if available) to see if that helps.

    Return to the index
    Q: Can this printer be setup to print in Black by default instead of Color?

    A: Yes. This setting is found on the Advanced menu of the Print Driver menu.

    1. Click on 'START', 'SETTINGS', 'PRINTERS'.
    2. Make sure your EPSON Stylus C62 printer is selected.
    3. Click the Properties or Preferences button.
    (If you see a Setup, Printer, or Options button, click it. Then click Properties or Preferences on the next screen.)

    Note: If you click the print icon on your application’s toolbar instead of selecting Print from the File menu, you may not get the option to change the printer software settings before printing.

    You see the Main menu of your printer settings dialog box.

    4. On the Main tab, click the Advanced button in the bottom right corner of the window. The Basic settings change to the Advanced settings.

    5. Select Black Ink Only from the Print Options menu.



    6. Select the type of document you are printing:

  • Draft: For rough drafts on plain paper. Saves ink.
  • Text: For text-only documents, like letters or reports. Delivers high-quality text printing.
  • Text & Image: For documents that have both text and images, like newsletters.
  • Photo: For photos and graphics, when you want good quality with faster printing.
  • Best Photo: For photos or graphics, when you need highest quality printing.

    7. Choose the type of paper you are printing on (click the arrow to scroll through the Type list).

    * If you wish to print in color, repeat the steps listed above replacing 'BLACK' with 'COLOR' for the ink type.
    ** Keep in mind that the printer will print both black and color when 'COLOR' is selected as the ink type in your 'Printer Properties'.

    Return to the index
    Q: Why does my printer print out blank pages?

    A: Your printer may not be selected in your application or selected as the Windows default printer. Select your printer in your application or select it as the default Windows printer.

    Your document may have more pages than you think. Select Print Preview in your software application Print menu before printing. Then either select to print only the current page, or only those pages with text, or delete the extra pages in your document before printing.

    Your printer is not selected in the Macintosh Chooser. Select your printer in the Chooser.

    Paper settings in the printer software may be incorrect for your paper size. Check the paper size, orientation, printable area, and layout settings to make sure they’re correct for your paper size.

    The print head nozzles may be clogged. Perform a nozzle check and clean the print head if necessary.

    If you're printing from a web browser, especially when viewing web pages using frames, the pages may not print correctly due to the web page design. This is not the fault of the printer or printer setup. Often there is nothing that you can do to print the complete page as displayed. Check to see if there is a Printer Friendly Version icon on the web page that you can click on. Try a different web browser or a newer version (if available) to see if that helps.

    Return to the index
    Q: How can I maximize my print speed from my PC?

    A: Verify that your system meets the system requirements. The print speed is dependent upon the amount of RAM in your system, the type and speed of your computer's processor, and the amount of free hard drive space and degree of fragmentation of hard drive space in your computer.

    Verify that you are using the EPSON Stylus C62 driver.

    In the printer software menu set the Quality/Speed slider to Speed.

    USB is recommended for the highest print speed.

    Too many active USB devices may slow the printer. Disconnect USB devices that you're not using. Close any background applications that are running.

    If you're using the parallel port, select the 'EPSON Printer Port' check box to enable the EPSON printer port, which is optimized for EPSON printers, instead of the Windows default printer port. This speeds up the data transfer rate to EPSON printers. Parallel port users can further increase print speed by enabling DMA transfer, as explained below.

    Enabling DMA transfer
    If your computer has a parallel port that supports ECP mode, you can enable DMA transfer to speed up printing. See your computer manual to determine if it supports ECP mode and DMA transfer. To determine whether you need to enable DMA transfer, compare the message below the EPSON Printer Port check box, and take the recommended action.

    Message - High Speed (DMA) Transfer enabled.
    Action - DMA transfer is already enabled. Click OK to close the dialog box.

    Message - For higher data transfer rates, use DMA Transfer.
    Action - Follow the steps below this table to enable DMA transfer.

    No message
    Action - Your system's parallel port setting does not allow DMA transfer. However, if you change the parallel port setting to ECP or Enhanced using your computer's BIOS setup program, you may be able to use DMA transfer. Consult your computer manual or computer manufacturer for instructions. Once you change the parallel port setting, follow the steps below this table to enable DMA transfer.

    Note: Before you run the BIOS Setup program, uninstall the printer software using Add/Remove Programs in the Control Panel.

    After running the BIOS Setup program, reinstall the printer software.

    If you want to enable DMA transfer, follow the steps below.

    1. Double-click the My Computer icon on your desktop and then Control Panel.
    2. Double-click the System icon and click the Device Manager tab.
    3. Double-click the Ports (COM & LPT) icon and then the LPT1 icon. If your printer is connected to a port other than LPT1, double-click the appropriate port icon.
    4. Click the Resources tab, then clear the Use automatic settings check box.
    5. Write down the Input/Output Range settings shown in the resource settings box.
    6. Select a basic configuration setting from the Setting based on list that uses the same Input/Output Range settings as those you wrote down in Step 5, and make sure that the Direct Memory Access channel and Interrupt Request numbers are allocated and displayed. Confirm also that the Conflicting device list text box shows No conflicts.
    7. Click OK to save the settings.
    8. Reopen the Speed & Progress dialog box to verify whether DMA transfer has been enabled.

    Note:
    You may not be able to use DMA transfer on some computers even after you make the settings explained above. Consult your computer maker for information on the DMA transfer capability of your computer.

    Return to the index
    Q: Why can't I print from a particular Windows application in color?

    A: Make sure the correct driver is selected and the color option is enabled in the printer driver. Try printing again. If the image comes out monochrome, print from a resident program within Windows, such as Paintbrush. If the results are successful from Paintbrush, contact the software manufacturer of the application for assistance. If the results are not successful, troubleshoot the pertinent areas within Windows, such as the video driver.

    Return to the index
    Q: How can I stop the Separator Page from printing in Windows ME?

    A: To eliminate the separator page, please follow the directions below.

    1. Click on START, go to SETTINGS, and click on PRINTERS.
    2. Right click on your Stylus C62 and click on PROPERTIES.
    3. Where it says SEPARATOR PAGE, change to NONE.
    4. Click on APPLY.
    5) The separator page has now been turned off.

    Return to the index
    Q: Is there any difference in printing performance between the parallel and USB interfaces?

    A: Yes, USB is the recommended interface for the highest speed. When running Windows 98 or ME the parallel performance will be about equal or a little slower than USB. The design of Windows 2000 and Windows XP (which is based on Windows 2000) has a slower parallel printing performance. USB is the best choice of interfaces and will keep the printer running at full engine speed.

    Return to the index
    Q: I installed the printer driver on my Macintosh, but it isn't showing up in the Chooser. What should I check?

    A: Make sure the QuickDraw GX extension is disabled, and make sure the "SC62" and "EPSON Status Monitor3" extensions are enabled. Then, restart your Macintosh.

    Return to the index
    Q: Why am I getting a memory error message when I try to print from my Macintosh?

    A: You may need to increase the memory allocation for your application, EPSON Status Monitor3, or both. If you have background printing enabled, you may want to try disabling it.

    Return to the index
    Q: A portion of my image doesn't print when I'm printing from my Macintosh.

    A: Your system may not have enough available memory. Close any other applications you are running and turn off background printing. You may need to increase the memory allocation for your application, the EPSON Status Monitor3, or both.

    Return to the index
    Q: Whenever I try to print from my Macintosh, I get a type 11 error and my system locks up. What's wrong?

    A: These issues are typically memory related errors. Check the available memory and its allocation. You may need to increase the memory allocation for your application, the EPSON Monitor3, or both. Insure that the needed system resources are available. If you have background printing enabled, you may want to try disabling it. Some printing issues can also be caused by conflicts with Extensions and Control Panels. Turn off all third party Extensions and Control Panels that have been added to the system and restart.

    Return to the index
    Q: I am getting the message "Sorry SC62 cannot be used" when I try to select the "SC62" icon in the Chooser. What should I do?

    A: This message indicates that there is something wrong with the driver or the way it was installed, and you will need to remove and reinstall the driver. To remove the driver, trash the "SC62", "EPSON Monitor3", and "EPSON Folder" extensions from your "Extensions" folder (the "Extensions" folder is located in your "System Folder" folder in your hard drive). Then, restart your Macintosh and reinstall the driver. If you have printer drivers of other EPSON printers installed on your system, you may need to reinstall them after removing the Stylus C62 driver.

    Return to the index
    Q: Does the Stylus C62 work with Apple's Desktop Printing?

    A: Yes, choose Custom Install in the Installer and select Desktop Printing. Macintosh users can simply drag and drop files to the desktop printing icon for printing to the Stylus C62. Network printing can be performed using AppleTalk protocol but TCP/IP is not supported at this time.

    Return to the index
    Q: The printer won't feed paper. What should I do?

    A: Power the printer on and press the Maintenance button to see if paper will load. If the paper doesn't load, make sure the paper isn't curled or creased, isn't loaded above the arrow on the left edge guide, and that the paper isn't jammed in the printer.

    If the Error light is on solid, reload the paper, making sure the paper edge guide is adjusted to fit the paper's width, and then press the Maintenance button again to see if the paper will now load.

    If the Error light is flashing, turn the printer off, reload the paper, turn the printer back on, and try pressing Maintenance again to see if the printer will now successfully load the paper.

    If the printer still will not load paper, power the printer off, remove the printer cable, and make sure all of the packing materials are removed. If the problem persists, the printer may need to be sent in for service and you should call Epson technical support for further assistance.

    Return to the index
    Q: Nothing prints. What should I do?

    A: Make sure the printer cable is securely connected to the printer and computer ports. Turn on the computer and try printing again. If the cable was not the issue try running a nozzle check. If the nozzle check works, try checking for and deleting any stalled print jobs.

    Return to the index
    Q: The printer sounds like it is printing, but no ink is on the paper. What's wrong?

    A: The print head nozzles may be clogged. From the Utility section found in the EPSON printer driver, clean the print heads by performing a head cleaning followed by printing a nozzle check pattern. A head cleaning and nozzle check must be performed as a cycle. After printing a nozzle check, examine the printed pattern. Each colored square should be solid, with no gaps or lines. If there are stripes, continue with another cycle. Perform up to 4 cycles if necessary. If the nozzle check is not printing completely, and if the head cleanings do not help the nozzle check pattern to print completely, try replacing the ink cartridge. Make sure your ink cartridges are not outdated. They should be replaced six months after installing them in the printer to ensure the ink is fresh.

    Return to the index
    Q: My printouts are missing color and/or black print. How can I resolve this issue?

    A: If the printer is printing blank pages, make sure you are using the correct printer driver and make sure the paper size is correctly selected in the driver. If the printer is printing black only, the "Ink" option in the printer driver may be set to "Black" instead of "Color" or a setting in the software may be set to print black only. Also, the print head nozzles may be clogged. From the Utility section found in the EPSON printer driver, clean the print heads by performing a head cleaning followed by printing a nozzle check pattern. A head cleaning and nozzle check must be performed as a cycle. After printing a nozzle check, examine the printed pattern. Each colored square should be solid, with no gaps or lines. If there are stripes, continue with another cycle. Perform up to 4 cycles if necessary. If the nozzle check is not printing completely, and if the head cleanings do not help the nozzle check pattern to print completely, try replacing the ink cartridges. If this doesn't help your printer may require service and you should contact Epson technical support for further assistance.

    Return to the index
    Q: Vertical lines are not aligned or vertical banding appears. How do I align the print head?

    A: If your printouts contain misaligned vertical lines, you may need to align the print head.
    Your printer must be connected to a local port, not on a network, to use the Print Head Alignment utility.
    Follow these steps:

    1. Turn on the printer. Then load plain, letter-size paper.
    2. Follow the directions for your operating system.

    Windows:
    Right-click the printer icon on your taskbar (in the lower right corner of your screen) and select Print Head Alignment.

    Macintosh OS 8.5.1 to 9.x:
    Open your application's File menu and choose Page Setup or Print. Then click the Utility button. On the Utility menu, click the Print Head Alignment button.

    Macintosh OS X:
    Open the Applications folder and double-click EPSON Printer Utility. Select C62 Series in the printer list, click OK, and then select Print Head Alignment.

    3. Follow the instructions on the screen to print a test page. You see the Print Head Alignment window.



    4. 4. On the printed page, select the pattern with the two vertical lines most precisely printed on top of each other. You may need to use a magnifying glass or loupe. Select one pattern each for rows 1, 2, and 3. Then enter the number of the best pattern for each row in the corresponding boxes on the screen. Then click Finish.



    If you can't find an aligned pattern, choose the best pattern and click Realignment. Then repeat this step.

    Return to the index
    Q: How can I stop the printer from feeding multiple pages at the same time?

    A: Make sure the paper you are using is not too thin or too thick (see paper specifications in the Reference Guide on the CD-ROM supplied with the printer). If it is very humid, the paper my have absorbed moisture and should be replaced with dry paper. Remove the stack of paper and fan the edges to separate the sheets. Reload the paper, making sure the edge guides are snug against both sides of the paper, and then press the Paper button to see if it feeds the paper correctly. If that doesn't help try different paper from a new package.

    Return to the index
    Q: Sometimes the paper doesn't eject all the way or is wrinkled. What should I do?

    A: Make sure the correct paper size is selected in your application and/or printer software. If the paper doesn't eject fully, it may be too long for the printer. If the paper is wrinkled, the paper may be damp or too thin.

    Return to the index
    Q: Why are my margins incorrect?

    A: The paper may be loaded incorrectly. Make sure that the left and right edge guides are flush against both sides of the paper. Make sure the margins are set correctly in your software application (margins are not adjustable via the printer driver). Make sure the correct paper size is selected in the printer driver settings.

    If you're printing from a web browser, especially when viewing web pages using frames, the pages may not print correctly due to the web page design. This is not the fault of the printer or printer setup. Often there is nothing that you can do to print the complete page as displayed. Check to see if there is a Printer Friendly Version icon on the web page that you can click on. Try a different web browser or a newer version (if available) to see if that helps.

    Return to the index
    Q: How can I maximize the print speed from my PC?

    A: Verify that your system meets the system requirements. The print speed is dependent upon the amount of RAM in your system, the type and speed of your computer's processor, and the amount of free hard drive space and degree of fragmentation of hard drive space in your computer. Too many active USB devices may slow the printer. Disconnect USB devices that you're not using.

    Verify that you are using the EPSON Stylus C62 driver. Increasing or maximizing physical RAM, lowering the print resolution, and if you are printing multiple copies of the same document, activate the "High Speed" option in the printer driver settings. Close any background applications that are running. On a PC creating a unique spool directory improves printing performance by eliminating spooling conflicts within Windows. If your computer supports ECP/DMA mode, it should be enabled for maximum print speeds (see your computer documentation for details).

    Return to the index
    Q: Why does the image look inverted, as if viewed in a mirror?

    A: You may have accidentally used the "Flip Horizontal" option in the printer driver or a similar feature in your application. Turn off the setting in the printer driver and/or software application and try printing again.

    Return to the index
    Q: Is there a printer self test to determine if a problem is caused by the printer?

    A: You can run a printer operation check to determine whether the problem comes from the printer itself or some other source. If the results are satisfactory, the problem lies in your software settings, the interface cable, or your computer. Follow these steps to run the printer check:
    1. Make sure both the printer and computer are turned off.
    2. Disconnect the interface cable from the printer.
    3. Make sure paper is loaded in the printer.
    4. Hold down the Maintenance button, and turn on the printer.



    Release the Maintenance button when a test page begins printing. The printer prints its ROM version number and a nozzle check pattern.



    If the pattern has stripes, you need to clean the print head.

    5. To end the check, turn off the printer after it prints the check page. Then reconnect the interface cable and turn on your printer and computer. If the check page prints, the problem probably lies in your software settings, the interface cable, or your computer. If the check page doesn't print, you should contact EPSON technical support.

    Return to the index


    Q: Does the type of paper I use really make a difference?

    A: The ink in this printer works great on inexpensive uncoated paper for your everyday printing needs.

    For high quality printouts and for long lasting images such as photos, it is important to use genuine EPSON brand paper. EPSON brand paper has been specifically developed to be compatible with the ink formula used in EPSON printers.

    Other brands of paper, which claim they can be used with all brands of ink jet printers, may not be compatible with the EPSON dye based inks. These papers may give you lower quality color images and will not have the longevity of EPSON's long lasting media. The ink also may not dry properly, because the ink doesn't bind properly to the media, causing smearing and pages sticking together.

    Return to the index

    Q: How do you select the correct media type in the printer software?

    A: Your printer automatically adjusts itself for the type of paper you select in your printer software. That's why the Media Type setting is so important. It tells your printer what kind of paper you're using and adjusts the ink coverage accordingly. Before you print, always check your Media Type setting. Here are the settings you should choose for your paper:

    For this paper Select this Media Type setting
    Plain paper sheets or envelopes
    EPSON Premium Bright White Paper
    Plain paper
    EPSON Iron-On Transfer Paper 360 dpi Ink Jet Paper
    EPSON High Quality Ink Jet Paper
    EPSON Photo Quality Ink Jet Paper
    EPSON Photo Quality Ink Jet Cards
    EPSON Photo Quality Self Adhesive Sheets
    Photo Quality Ink Jet Paper
    EPSON Photo Paper
    EPSON Glossy Photo Paper
    EPSON Glossy Photo Greeting Card
    EPSON Panoramic Photo Paper
    EPSON All-Purpose Glossy Paper
    Glossy Photo Paper
    EPSON Premium Glossy Photo Paper
    EPSON Premium Semigloss Photo Paper
    EPSON Premium Luster Photo Paper
    Premium Glossy Photo Paper
    EPSON Matte Paper - Heavyweight
    EPSON Double-Sided Matte Paper
    Matte Paper - Heavyweight
    EPSON Photo Stickers Photo Quality Glossy Film
    EPSON Ink Jet Transparencies Ink Jet Transparencies

    Return to the index
    Q: How should I preserve my pictures?

    A: For optimum image quality and longer print life, print your photos with EPSON ink and EPSON's light-resistant Matte Paper - Heavyweight (S041257). EPSON Premium Glossy paper also offers improved lightfastness but is more susceptible to atmospheric contamination than Matte Paper - Heavyweight or EPSON Photo paper. Prints with other EPSON media are less fade-resistant but can be preserved if kept in a photo album.

    As with all photos, care should be taken to preserve the long life of all your prints. All color dyes change over time. For storage in photo albums, we recommend acid-free, archival sleeves that are commonly available from camera shops and other retailers. For indoor display, we recommend avoiding direct sunlight and mounting prints under glass to help protect them from humidity, cigarette smoke, and other atmospheric contaminants. Color stability varies based on lighting conditions, color intensity, color range, and print media.

    Return to the index
    Q: Can I use the cleaning sheets that are included with any special media I purchase?

    A: Cleaning sheets that are included with certain types of Epson media are designed for other printer models. Do not use these sheets as they may damage the printer.

    Return to the index
    Q: Can I use sheet labels with this printer?

    A: Yes, EPSON makes Photo Quality Self Adhesive Sheets (S041106). To avoid paper jams, only load one Photo Quality Self Adhesive Sheet at a time. Set the Media Type in the printer driver to the "Photo Quality Ink Jet Paper" setting.

    Return to the index
    Q: What is the correct way to load transparency paper?

    A: It is recommended to use EPSON Ink Jet Transparency Paper (S041064). Before loading the transparency, place the included support sheet or a sheet of plain paper beneath the transparency (or beneath the stack of transparencies if you are loading more than one). You can load up to 10 transparencies at a time, but if you have more than one transparency loaded, the minimum top margin you can use is 1.2 inches. Also, you may get better results by loading one sheet at a time. Insert the transparency sheet making sure that the notch is at the top right side of the sheet. Remember to choose the correct Media Type setting in the printer driver software.

    Return to the index
    Q: Does this printer support borderless printing?

    A: Yes, only on 4 x 6 inch perforated EPSON Glossy Photo paper (S041134). Choose Glossy Photo Paper as the media type in the driver set up.

    Return to the index
    Q: How do I print on envelopes with this printer?

    A: You can load up to 10 envelopes at a time. Load the envelopes short edge first against the right edge of the sheet feeder.



    The printable side should be up, and the flap side should be down and on the left. Slide the left edge guide against them.

    Move the thickness lever on the side of the printer to the envelope position. (Remember to move the thickness lever back to the normal position when you're done.)

    Before you print, make these settings:
    For Orientation, select Landscape (for OS X, select the middle icon in the Orientation section of the page setup dialog box).

    For paper Type (Windows) or Media Type (Macintosh), select Plain Paper.
    Choose the correct envelope size as the paper Size (Windows) or Paper Size (Macintosh).

    The most common envelope size is Envelope #10.

    Return to the index
    Copyright © 2002, Epson America, Inc. All rights reserved.
