Check the Print Head Nozzles

You can print a nozzle check pattern to check for clogged nozzles using the printer’s control panel or your software.

From the Control Panel

1.	Load a few sheets of plain paper in the sheet feeder.

2.	Turn off the printer.

3.	Hold down the  paper button as you press the  power button to turn the printer back on. Hold down both buttons until the  power light begins to flash, then release the buttons.

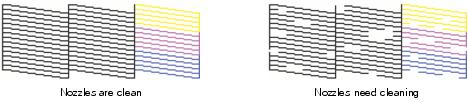

4.	Check the nozzle check pattern that prints to see if there are gaps in the lines.

5.	If there are no gaps, the print head is clean and you can continue printing.

If there are gaps or the pattern is faint, clean the print head.

From the Computer

1.	Load a few sheets of plain paper in the sheet feeder.

2.	Windows: Right-click the  printer icon in the bottom right corner of your screen (the taskbar) and select Nozzle Check.

Macintosh: Open the Applications folder, open the EPSON Printer Utility3, select WF 1100 Series, and click OK. Then select Nozzle Check.

3.	Click Print.

4.	Check the nozzle check pattern that prints to see if there are gaps in the lines.

5.	If there are no gaps, click Finish.

If there are gaps or the pattern is faint, clean the print head.
