Select Scanned Image Area

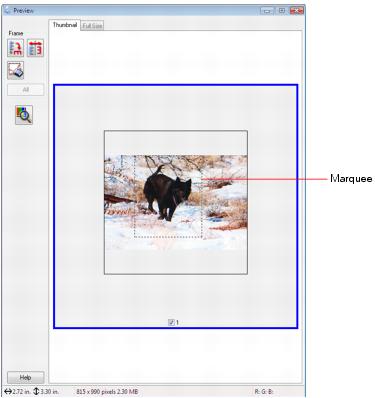

In thumbnail preview, your scanned image area is selected automatically.

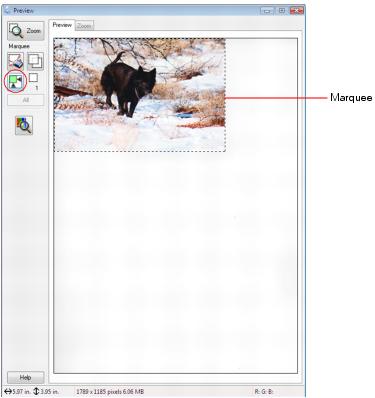

In normal preview, you create the scanned image area by clicking a button.

You can adjust the scanned image area by creating and/or moving the dotted line (marquee) outlining the scan area:

1.	Do one of the following:

•	Thumbnail preview: Create a marquee by placing your cursor in one corner of the desired scan area, clicking, and dragging the cursor to the opposite corner.

•	Normal preview: Click the  auto locate icon to create a marquee.

2.	To move a marquee, click inside the marquee and drag it where you want it.

3.	To resize a marquee, place the cursor over a marquee edge or corner, click, and drag the edges where you want them.

Tip:
To retain the marquee width/height proportions, hold the Shift key as you resize the marquee.

4.	In Normal Preview mode, you can create up to 50 marquees at a time. Click the  copy marquee icon to copy existing marquees, or click the  delete marquee icon to delete the selected marquee.

5.	If desired, you can select image quality settings.

6.	When you’re finished, you can select your scan size and scan.
