Load Envelopes

You can print on plain paper envelopes in 4 1/8 × 9 1/2 inch (#10) (105 × 241 mm) size.

1.	Pull out the paper cassette, and lift off the paper cassette cover.

2.	Slide the edge guides to the sides of the paper cassette.

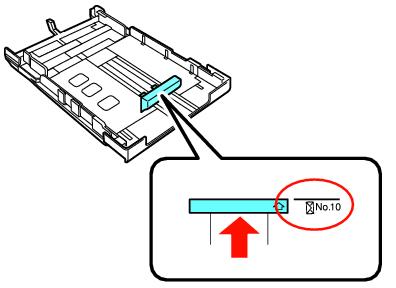

3.	Slide the guide shown below to your envelope size.

4.	Load up to 5 envelopes as shown, with the printable side down and flap edge left.

Note:
Make sure the envelopes are not sticking out from the end of the cassette.

Tip:
Press each envelope flat before loading it or load one envelope at a time.

5.	Slide the edge guides against the edges of the envelopes, but not too tightly. Make sure the envelopes are under the tabs on the guides.

6.	Replace the paper cassette cover and insert the cassette back into the printer.

Note:
The envelopes may slide forward slightly as you insert the cassette. This is normal.
Keep the cassette flat as you insert it.
Do not remove or insert the cassette while printing.

7.	Open the output tray, pull out the output tray extensions, and flip up the paper stopper.

Note:
Do not use envelopes that are curled or folded, and avoid using envelopes that are too thin because they may curl during printing. Before printing from your computer, select Envelope as the paper type, Envelope #10 as the paper size, and Landscape as the orientation.
