Load Envelopes

You can print on #10 envelopes (4 1/8 × 9 1/2 inches).

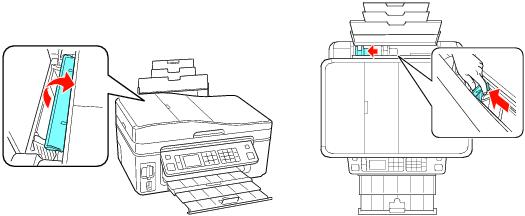

1.	Open the paper support and pull up the extensions.

2.	Extend the output tray and raise the stopper.

3.	Flip the feeder guard forward. Squeeze the edge guide and slide it left.

4.	Load up to 10 envelopes against the right side and beneath the tab.

Load them printable side up and flap edge left.

Tip:
Press each envelope flat before loading it or load one envelope at a time.

5.	Slide the edge guide to the edge of the envelopes, but not too tightly.

Note:
Avoid using envelopes that are too thin, because they may curl during printing.
Do not use envelopes that are curled or folded.
Before you print, make sure you select Envelope as the paper type, Envelope #10 as the size, and Landscape as the orientation.
