Installing the PCL or PostScript Printer Software - Windows 7/Windows Vista

If you did not install the standard EPSON printer software, you need to install either the PCL or PostScript (PS3) printer software before you can adjust the print settings and print to your network printer.
Note: Make sure your product is turned on and connected to the same network as your computer before installing the printer software.
  1. Double-click the Download WP-4090 Driver shortcut on your desktop and download the latest PCL or PS3 printer software.
  2. Extract the zipped folder that you downloaded in the previous step.
  3. Do one of the following:
    • Windows 7: Click , select Devices and Printers then select Add Printer.
    • Windows Vista: Click and select Control Panel. Double-click Printers, then select Add Printer.
    You see this window:


  4. Click Add a network, wireless or Bluetooth printer. You see a window like this:


  5. Select your product from the list of network printers and click Next. Do not select any product with (WSD) in its name.
    Note: If your product does not appear on the list, make sure it is turned on and connected to your network, and click Search again.
  6. Click Have disk. You see this window:


  7. Click Browse.
  8. Locate and open the folder you unzipped in a previous step.
  9. Do one of the following:
    • If you are installing the PCL printer software, select EPUP6SETUP.inf and click OK.
    • If you are installing the PS3 printer software, select eppsnt.inf and click OK.

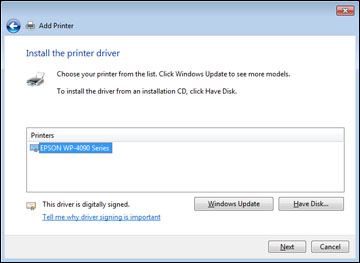

    You see a window like this:


  10. Select the name of your product and click Next.
    Note: If you are installing the PCL printer software, select Epson Universal Laser P6 from the Printers list.
  11. Enter the name of your product as the Printer name and click Next.
  12. Click Print a test page to confirm that your product is installed.
  13. Click Finish to close the window and complete setup.
Your product is now installed.
Note: If you are using the PCL printer software, you need to select your product in the printer software before you can adjust your print settings.
