Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

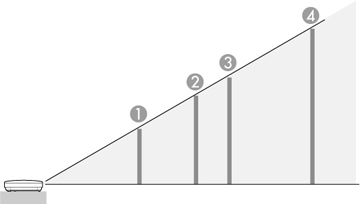

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.)



PowerLite 1950/1955/1960/1965

4:3 Aspect Ratio

Screen or image size Projection distance

Wide to Tele

1 50 inches 55.1 to 90.29 inches (140 to 229 cm)
2 80 inches 89 to 144.9 inches (226 to 368 cm)
3 100 inches 111 to 181.1 inches (283 to 460 cm)
4 150 inches 167.7 to 272.4 inches (426 to 692 cm)

PowerLite 1940W/1945W

16:10 Aspect Ratio

Screen or image size Projection distance

Wide to Tele

1 50 inches 58.7 to 95.7 inches (149 to 243 cm)
2 80 inches 94 to 153.5 inches (239 to 390 cm)
3 100 inches 118.1 to 192.1 inches (300 to 488 cm)
4 150 inches 177.6 to 288.6 inches (451 to 733 cm)
