Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.
  1. Make sure the connected image source you want to use is turned on.
  2. For video image sources, insert a DVD or other video media and press its play button, if necessary.
  3. Do one of the following:

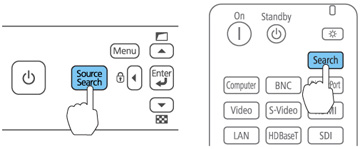

    • Press the Source Search button on the projector or the Search button on the remote control until you see the image from the source you want.

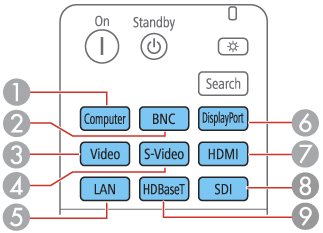

    • Press the button for the source you want on the remote control. If there is more than one port for that source, press the button again to cycle through the sources.


      1 Computer port source
      2 BNC port source
      3 Video port source (composite video)
      4 S-Video port source
      5 Networked computer source
      6 DisplayPort source
      7 HDMI port source
      8 SDI port source (PowerLite Pro G6900WU)
      9 HDBaseT port source (PowerLite Pro G6750WU/G6800/G6900WU)
