Removing the Lens Unit

You can remove the lens unit to replace it with a different lens.
Caution:
Remove the lens unit only when necessary to prevent dirt or dust from entering the projector and lowering the projection quality. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.
  1. Center the lens using lens shift.

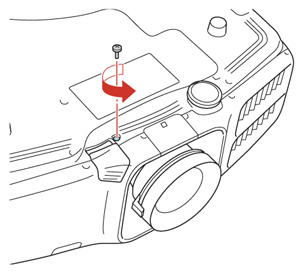

  2. Remove the screw securing the lens unit release button.

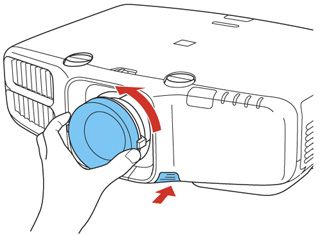

  3. Press and hold the lens unit release button as you turn the lens unit counterclockwise until you hear it click.


  4. Gently pull the lens unit straight out.
Parent topic: Attaching and Removing the Lens Unit
