Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front ceiling

Rear ceiling

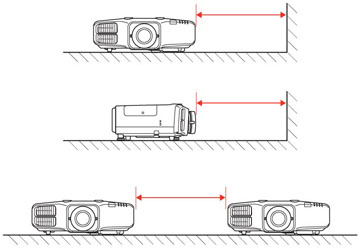

Note: Be sure to leave at least 20 inches (50 cm) of space in front of the air exhaust and intake vents and, when setting up multiple projectors, 20 inches (50 cm) of space between the projectors.

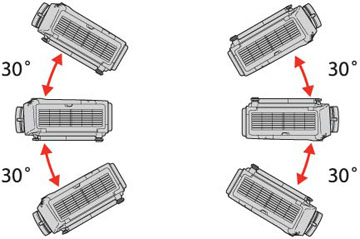

If you mount the projector to the ceiling, it can be installed at the following angles:

Vertically: Any angle up to ±30°.
Horizontally: Can be tilted within the range of the rear feet.

If you project from the ceiling, set the Inv Direction Button setting (Extended > Operation) to On so that the operations on the screen match the control panel button commands.
