Placing 35 mm Slides on the Scanner

You can place 35 mm slides on the scanner using the slide portion of the 35 mm film strip holder.
Caution:
Hold only the edges of the film strips or use gloves, or you may damage the film. Make sure the white areas on the back of the holder are not scratched, dirty, or covered in any way or the scanner may not correctly detect the holder during scanning.
  1. Open the scanner cover.
  2. Remove the document mat from the scanner cover.

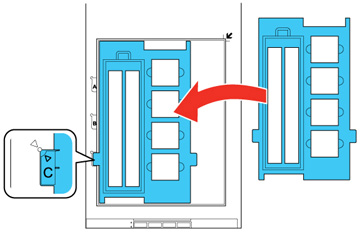

  3. Place the holder on the scanner glass as shown. Align tab "C" on the holder with area "C" on the scanner.

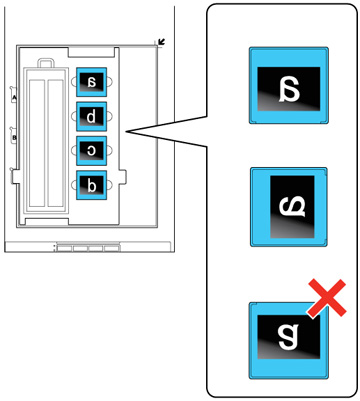

  4. Place up to four slides into the film holder with the shiny sides facing down in the direction shown.


    Note: The images and any wording on the slides should appear backward. Do not cover any of the small holes in the film holder.
  5. Close the scanner cover gently to keep the film holder in place.
