Scanner Parts



1 Scanner cover


1 Document mat
2 Scanner glass
3 Carriage (beneath scanner glass)

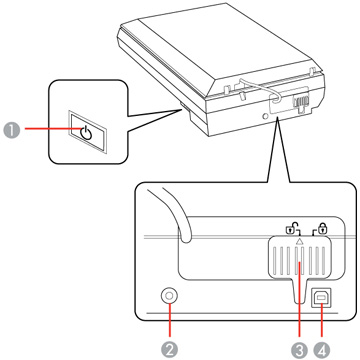

1 The  power button
2 DC inlet
3 Transportation lock
4 USB port

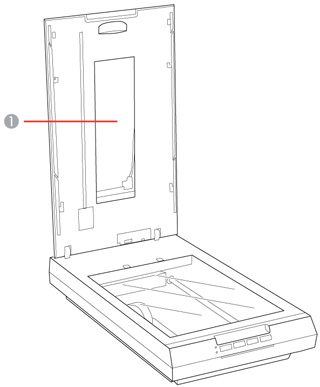

1 Transparency unit window (behind document mat)
