You can load
card stock, envelopes, and other thick media in the rear paper feed
slot.
Note: Paper
that is too stiff may not load correctly. Check the paper
specifications.
Send your print job from a computer or using the product's
touch screen.
If printing
from a computer, select Rear Paper Feed Slot for the
Source (Windows) or Paper Source (Mac OS X) setting.
If printing
from the product's touch screen, select Rear Paper Feed Slot
for the Paper
Source setting.
Flip open the rear paper feed slot cover and swing out the
paper support.
Slide the edge guides outward.
Do one of the following:
Load a single
sheet of paper or thick media, printable side up and short edge
first, in the center of the rear paper feed slot. Slide the edge
guides against the paper, but not too tightly.

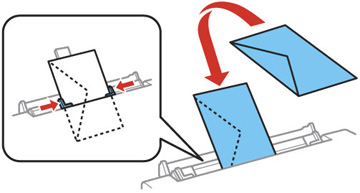

Load an
envelope, short edge first with the flap facing down, in the center
of the rear paper feed slot. Slide the edge guides against the
envelope, but not too tightly.

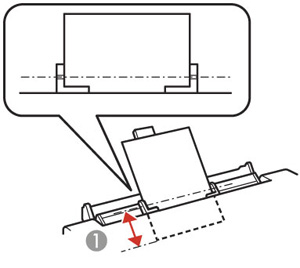

Push the paper or envelope down until it meets resistance.
About 2 inches (5 cm) of the paper should be fed inside the printer
as shown.
1
2 inches (5 cm)
When you are ready to print, press the start button.
Note: To
cancel printing, select Cancel.
Always follow
these loading guidelines:
Load one sheet or
envelope at a time.
Load the paper or
envelope short edge first and printable side faceup.
Check the paper
package for any additional loading instructions.
