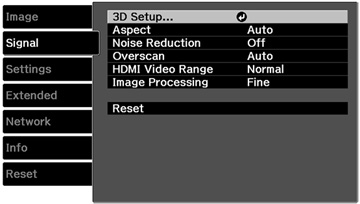

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.



To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
3D Setup 3D Display

3D Format

3D Depth

Diagonal Screen Size

3D Brightness

Inverse 3D Glasses

3D Viewing Notice

Selects various 3D options

3D Display: enables 3D mode

3D Format: selects the 3D format

3D Depth: sets the depth for the 3D image

Diagonal Screen Size : Select the actual size of the screen to maximize the 3D effect

3D Brightness: adjusts the brightness of the 3D image

Inverse 3D Glasses: reverses the images projected for the left and right eyes (enable only if 3D images are not displaying correctly)

3D Viewing Notice: enables the viewing notice displayed when 3D mode is activated

Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source; not available for HDMI sources
Resolution Auto

Normal

Wide

Sets the input signal resolution if not detected automatically using the Auto option
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in computer images
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images
Position Up, down, left, right Adjusts the image location on the screen
Auto Setup On

Off

Automatically optimizes computer image quality (when On)
Noise Reduction Off

1

2

3

Reduces flickering in analog images in three levels
Overscan Auto

Off

2%

4%

6%

8%

Changes the projected image ratio to make the edges visible by a selectable percentage or automatically
HDMI Video Range Auto

Normal

Expanded

Sets the video range to match the setting of the device connected to the HDMI input port

Auto: detects the video range automatically

Normal: normally for images from a device other than a computer; can also be selected if the black areas of the image are too bright

Expanded: normally for images from a computer; can also be selected if the image is too dark

Note: Can only be set when Epson Super White (located in the Advanced setting under the Image menu) is set to Off.
Image Processing Fast

Fine

Adjusts how images are processed

Fast: displays images quicker

Fine: displays images in higher quality

Note: The Reset setting does not reset the Diagonal Screen Size, 3D Viewing Notice, Aspect, and Image Processing settings.
