Performing a Nozzle Check

To maintain optimum print quality, perform a nozzle check before printing.
  1. If the platen is not in the forward position, press the  moveable base button to move it forward.
  2. Make sure that the M size (standard) platen is installed. The nozzle check pattern may not print correctly on the optional platens.

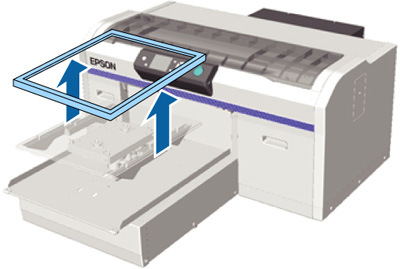

  3. Remove the platen frame.

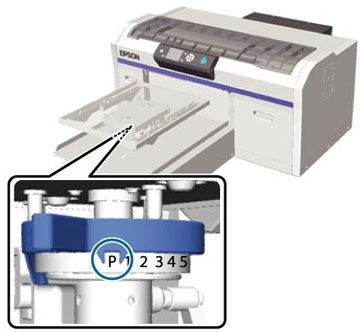

  4. Make sure that the height adjustment lever is at the P position.


  5. Press the  maintenance button on the control panel. The Maintenance menu appears.
  6. Press the up or down arrow button to highlight Nozzle Check, and press the right arrow button.
  7. Press the OK button twice. The nozzle check pattern prints directly onto the platen.
  8. Check the printed pattern:
    • If there are no gaps in the pattern, the nozzles are clean.


    • If there are gaps in the pattern, clean the print head.


      Note: A complete nozzle cleaning is only required if there are more than 3 nozzles missing and the gaps are adjacent to each other. Otherwise, cleaning is not required.
  9. Clean the platen using a cloth dampened with window cleaner or water.
