Saving the Lens Position and Using Saved Lens Positions

You can save the focus, zoom, and lens shift settings and then select the saved settings whenever you want to use them.

  1. Turn on the projector and display an image.
  2. Adjust the focus, zoom, and lens shift settings.
  3. Press the Menu button.
    Note: You can also press the Memory button on the remote control to access the Memory menu directly.

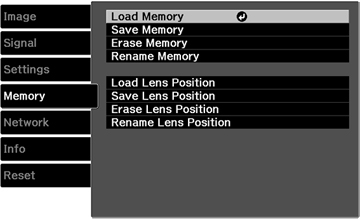

  4. Select the Memory menu and press Enter. You see this screen:


  5. Select one of the following options:
    • Load Lens Position: Overwrites your current settings with saved settings
      Note: You can load the saved settings from Memory1 or Memory2 by pressing the Lens1 or Lens2 buttons on the remote control.
    • Save Lens Position: Saves your current settings to memory (10 memories with different names are available)
      Note: A memory name that has already been used is indicated by a green mark. Saving over a previously saved memory overwrites the settings with your current settings.
    • Erase Lens Position: Erases the selected memory settings
    • Rename Lens Position: Renames a saved memory (12 characters maximum)
  6. Press Esc to exit.
Parent topic: Adjusting Projector Features
