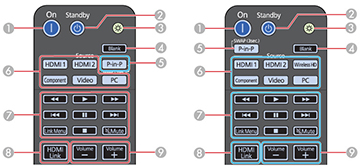

Top buttons
Left: PowerLite Pro Cinema LS10000
Right: PowerLite Pro Cinema LS9600e
| 1 | On button (turns on projector) |
| 2 | Standby button |
| 3 | Illumination button (lights the remote control) |
| 4 | Blank button (turns off video projection) |
| 5 | P-in-P button (controls the Picture-in-Picture mode for HDMI inputs) |
| 6 | Source buttons (select specific video input sources) |
| 7 | HDMI Link control buttons (control playback and other features of connected devices that support the HDMI CEC standard) |
| 8 | HDMI Link button (displays the settings menu for HDMI Link) |
| 9 | Volume up/down buttons (adjust volume for devices connected via HDMI Link) |
Center buttons
| 1 | Lens button (cycles through the lens adjustment options) |
| 2 | Color Mode button (selects display modes) |
| 3 | 2D/3D button (cycles between 2D and 3D modes) |
| 4 | Arrow buttons (move though on-screen options) |
| 5 | Enter button (selects options) |
| 6 | Default button (returns selected setting to default value) |
| 7 | Menu button (accesses projector menu system) |
| 8 | Esc button (cancels/exits functions) |

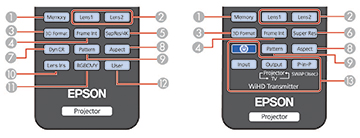

Bottom buttons
Left: PowerLite Pro Cinema LS10000
Right: PowerLite Pro Cinema LS9600e
| 1 | Memory button (accesses the Memory menu) |
| 2 | Lens 1 / Lens 2 buttons (loads a saved lens position) |
| 3 | 3D Format button (changes the 3D format) |
| 4 | Frame Int button (adjusts the Frame Interpolation setting) |
| 5 | SupRes/4K button
(PowerLite Pro Cinema LS10000; reduces blurring around the edges of
images when viewing 3D content, or adjusts the 4K Enhancement
setting for ultra-high-definition images)
Super Res button (PowerLite Pro Cinema LS9600e; reduces blurring around the edges of images) |
| 6 | Dyn Cr button (PowerLite Pro Cinema LS10000; sets Dynamic Contrast) |
| 7 | Aspect button (selects the image aspect ratio) |
| 8 | Pattern button (displays a test pattern) |
| 9 | Lens Iris button (PowerLite Pro Cinema LS10000; adjusts the contrast of the image by restricting the amount of light entering the lens) |
| 10 | RGBCMY button (PowerLite Pro Cinema LS10000; adjusts hue, saturation, and brightness for each RGBCMY color) |
| 11 | User button (PowerLite Pro Cinema LS10000; customizable for different functions) |
| 12 | WirelessHD transmitter control buttons (PowerLite Pro Cinema LS9600e; controls WirelessHD Transmitter functions) |
