Certain parts are labeled with a letter and number code. If you encounter any paper jams or errors, use these codes to locate and correct the problem.

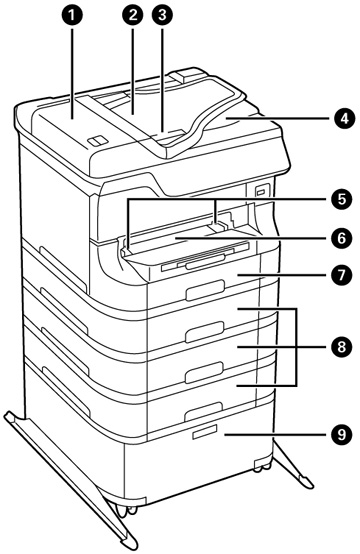

| 1 | ADF cover (F) |
| 2 | ADF input tray (F) |
| 3 | Edge guide |
| 4 | ADF output tray |
| 5 | Edge guides |
| 6 | Front paper feed slot (B2) |
| 7 | Paper cassette 1 (C1) |
| 8 | Optional cassettes 2 to 4 (C2 to C4) |
| 9 | Optional cabinet |

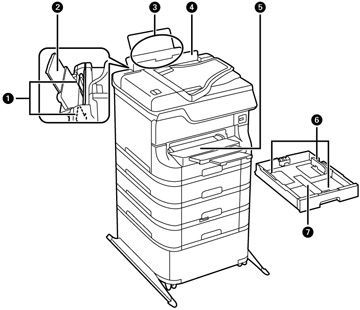

| 1 | Edge guides |
| 2 | Paper support |
| 3 | Rear paper feed slot (B1) |
| 4 | Feeder guard |
| 5 | Output tray |
| 6 | Edge guides |
| 7 | Paper cassette |
