Controlling Computer Features from a Projected Screen (PC Interactive Mode)

You can navigate, select, and interact with your computer programs from the projected screen using the interactive pens or your finger (BrightLink 595Wi+) just as you would a mouse.
Note: OS X users need to install the Easy Interactive Driver before using PC Interactive mode.
  1. Connect the projector to your computer using a USB cable.
  2. Turn on your projector and project your computer screen.
  3. Press the Menu button on the remote control, select the Extended menu, and press the Enter button.

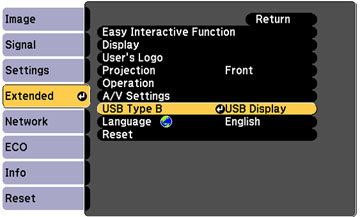

  4. Select the USB Type B setting and press the Enter button.


  5. Select one of the following:
    • Easy Interactive Function to use PC Interactive mode.
    • USB Display/Easy Interactive Function to use PC Interactive mode and USB Display.
  6. Press the Esc button to exit the USB Type B menu.
  7. Select the Easy Interactive Function setting and press the Enter button.


  8. Select one of the following as the Pen Operation Mode depending on the operating system your computer is using:
    • Mode 1: Windows XP or earlier
    • Mode 2: Windows Vista, Windows 7, Windows 8, and OS X
    • Mode 3: Linux
  9. Press the Enter button on the remote control and press the Menu button to exit the Extended menu.
  10. Hover near or tap on the board or the projected image with the interactive pen or your finger (BrightLink 595Wi+). The icon is displayed on the projected screen.
  11. Select the icon, then select the icon. You can now operate the computer using the interactive pens or your finger (BrightLink 595Wi+).
Parent topic: Interactive Modes
