Replacing the Platen

You may need to replace the platen, depending on the size of the T-shirt.

Note: There are five platen sizes: extra small, small, medium, large, and sleeve. The medium size platen (standard) is supplied with the printer.

If the platen is not in the forward position, press the moveable base button to move the platen forward.

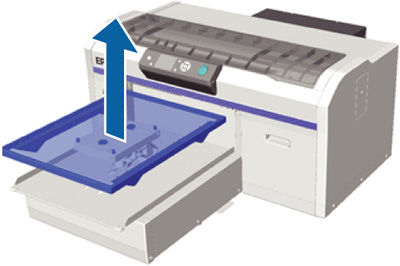

Hold the left and right sides of the platen and lift it up.

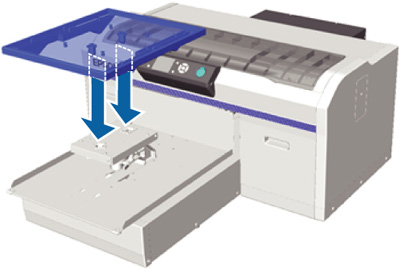

Align the replacement platen to fit into the holes in the moveable base and place the platen on the printer.

For best results, always align the print head after replacing the platen with a different size.
