Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.
Note: Wait 30 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy.
  1. Turn on the projector and display an image.

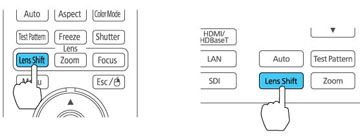

  2. Press the Lens Shift button on the control panel or remote control.


  3. Press the arrow buttons to adjust the position of the projected image as necessary.

    PowerLite Pro Z9870NL/Z11005NL



    1 Center of lens
    2 Projected image when lens shift is set in the center
    3 Maximum vertical range (V × 56%)
    4 Maximum horizontal range (H × 19%)
    Note: You cannot move the image to both the horizontal and vertical maximum values.

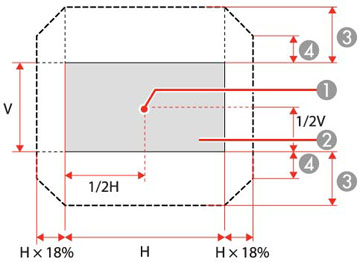

    PowerLite Pro Z9800WNL/Z9900WNL/Z11000WNL/Z9750UNL/Z9870UNL/Z10000UNL/Z10005UNL


    1 Center of lens
    2 Projected image when lens shift is set in the center
    3 Maximum vertical range (V × 60%)
    4 Maximum horizontal range (H × 18%)
    Note: You cannot move the image to both the horizontal and vertical maximum values.
  4. When you are finished, press the Esc button on the control panel or remote control.
Note: When adjusting the image height, position the image lower than where you want it to be and then move it up. This will help prevent the image from moving down after adjustment.
