Adjusting the Image Position Using Screen Position

You can adjust the image position if there are margins between the edge of the image and the projected screen frame.
Note: You cannot adjust the screen position if the Screen Type is set to 16:10 for the PowerLite Pro Z9800WNL, Z9900WNL, Z11000WNL, Z9750UNL, Z9870UNL, Z10000UNL, or Z10005UNL models, or 4:3 for the PowerLite Pro Z9870NL and Z11005NL models.
  1. Turn on the projector and display an image.
  2. Press the Menu button.
  3. Select the Extended menu and press Enter.

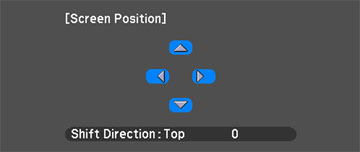

  4. Select Display > Screen > Screen Position.
  5. Use the arrow buttons on the remote control or projector to adjust the position of the image.


  6. When you are finished, press the Menu button.
Parent topic: Using Basic Projector Features
