Correcting Image Shape with Point Correction

You can use the projector's Point Correction feature to fine-tune the image shape using points on a grid.

Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
Press the Menu button.
Select the Settings menu and press Enter.
Select the Geometric Correction setting and press Enter.
Select the Point Correction setting and press Enter.
Note: If you see a confirmation message, press Enter.
You see this screen:
Select the Point Correction setting and press Enter.
Select the number of grid lines to display and press Enter.
Note: If you need to change the color of the grid lines, select the Pattern Color setting and select a suitable color.

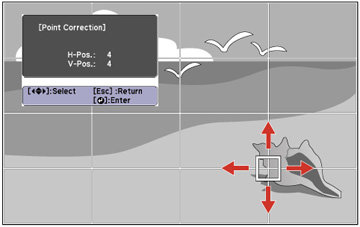

Use the arrow buttons on the projector or remote control to move to the point on the grid that you want to adjust. Then press Enter. The box changes from a single line to a double-lined square.
Use the arrow buttons to correct the image shape in all necessary directions.

Note: You can press Enter to show or hide the image and grid to check the results.
Press Esc to return to the previous screen and select another point to correct, if necessary.
When you are finished, press Menu.
