Using Quick Wireless Connection (Windows Only)

You can use the Quick Wireless Connection USB key to quickly connect your computer to the projector wirelessly. Then you can project your presentation and remove the key when you are done.
Note: The Quick Wireless Connection USB key is not included with your projector and is optional.
Note: Make sure the wireless LAN module is installed. The wireless LAN module is not included with your projector and is optional.
  1. Turn on the projector.

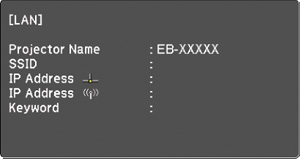

  2. Press the LAN button on the remote control. You see a screen like this:


  3. Verify that an SSID and IP address are displayed, then remove the wireless LAN module from the projector if necessary.

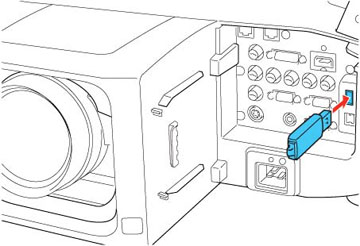

  4. Insert the Quick Wireless Connection USB key into the same port used for the wireless LAN module.


    You see a projected message that the network information update is complete.
  5. Remove the USB key.
  6. Reinsert the wireless LAN module into the projector.
  7. Connect the USB key to a USB port on your computer or laptop.
    Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchQWRD.exe, then select Allow on the next screen.
  8. Follow the on-screen instructions to install the Quick Wireless Connection driver.
    Note: If you see a Windows Firewall message, click Yes to disable the firewall for this application.
    After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN button on your remote control or restart your computer.
  9. Run your presentation as necessary.
  10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.
    Note: You may need to restart your computer to reactivate your wireless LAN connection.
