You
can install the cable clips that came with your projector to
provide additional support to the power cord and HDMI cable.
Connect the power cord and HDMI cable to the
projector.

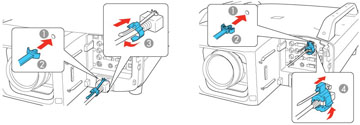

Insert the end of each cable clip anchor into the cable clip
slot above the power inlet and HDMI
port as shown.
1
Cable clip slot
2
Cable clip anchor
3
Power cable clip
4
HDMI cable clip
Place the open cable clips around the power cord and HDMI
cable, but do not lock them.
Slide each cable clip onto the anchors and lock the clips
onto the power and HDMI anchors as shown.
To
remove the cable clips, open the clips and disconnect the cables.
Then pinch the sides of each cable clip anchor and carefully pull
them out of the cable clip slots.
